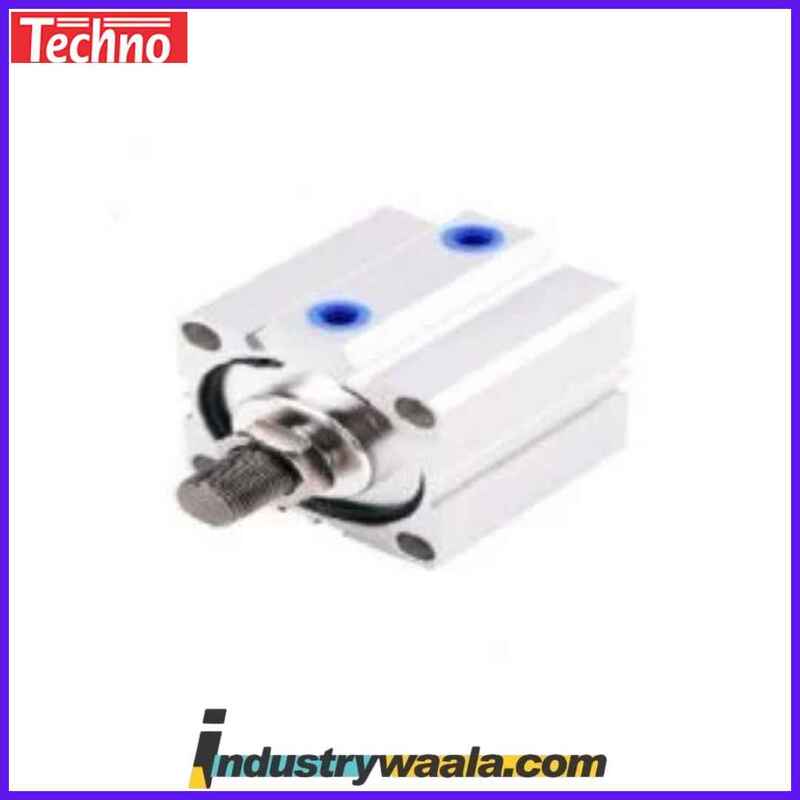

Techno SDA16 X 5M Pneumatic Cylinder

The Techno SDA16 x 5M Pneumatic Cylinder is a precision-engineered double-acting actuator designed for applications requiring short-range, high-accuracy linear motion. Featuring a 16mm bore diameter and a 5mm stroke length, this compact cylinder is ideal for systems where space is limited, and precise movement is essential. The SDA16 x 5M is built for durability and longevity with anodized aluminum construction, and it includes features such as adjustable speed control and end-of-stroke cushioning to ensure smooth, controlled operation with minimal maintenance.

Detailed Description:

1. Overview:

• Model: Techno SDA16 x 5M
• Type: Double-Acting Pneumatic Cylinder
• Bore Diameter (SDA16): 16 mm
• Stroke Length (5M): 5 mm

The SDA16 x 5M pneumatic cylinder is engineered for applications that require highly controlled, precise, short-range actuation. Its 16mm bore diameter and 5mm stroke length make it perfect for systems needing fine positioning in tight spaces. The cylinder operates on compressed air, with the capability to push and pull the piston for reliable and repeatable motion.

2. Key Features:

• Compact and High-Precision Design:
  • With a 16mm bore diameter and a 5mm stroke length, the SDA16 x 5M offers precision in confined spaces. Despite its small size, it delivers reliable force and accuracy, making it ideal for high-precision tasks in automation or robotics.
• Double-Acting Operation:
  • This cylinder uses compressed air to move the piston in both directions (extension and retraction), offering bi-directional movement for applications where the piston must travel back and forth in a controlled manner.
• End-of-Stroke Cushioning:
  • The SDA16 x 5M features adjustable cushioning at both ends of the stroke. This cushioning reduces the impact at the end of each travel cycle, preventing damage to the cylinder and surrounding components, while also minimizing noise and vibration.
• Adjustable Speed Control:
  • Users can adjust the speed of both the extension and retraction phases. This feature allows for fine-tuned control of the movement, which is essential for applications that require synchronization or smooth, controlled actuation.
• Durable Construction:
  • Built with anodized aluminum, the SDA16 x 5M is corrosion-resistant, lightweight, and durable. The high-quality seals inside the cylinder ensure minimal wear, improving its longevity and reducing the need for maintenance.
• Flexible Mounting Options:
  • The SDA16 x 5M can be installed using a variety of mounting configurations, such as foot, flange, or pivot mounts, offering flexibility in integration into various machinery or systems.

3. Specifications:

• Bore Diameter: 16 mm
• Stroke Length: 5 mm
• Operating Pressure Range: Typically 1.5 bar to 10 bar (150 to 1000 kPa)
• Temperature Range: -10°C to 70°C (depending on the seal material and operational conditions)
• Cushioning: Adjustable end-of-stroke cushioning for smoother, impact-free motion.
• Materials: Anodized aluminum body, high-quality seals, corrosion-resistant components.
• Mounting Options: Foot, flange, and pivot mounts for flexible installation.

4. Applications:

The Techno SDA16 x 5M Pneumatic Cylinder is perfect for short-range applications requiring precise, controlled motion in tight spaces:

• Automation Systems: Ideal for use in small-scale automation, particularly for tasks like precise positioning, micro-adjustments, or component handling.
• Material Handling: Suitable for conveyors, pick-and-place systems, and other material handling solutions where small, accurate movements are necessary.
• Robotics: Used in robotic arms, grippers, or other robotic actuators for tasks requiring small, fine-tuned movements in confined environments.
• Precision Machinery: Excellent for positioning, clamping, and small-scale pressing applications where precision and compactness are crucial.
• Medical Equipment: Can be used in medical devices that require small-range, controlled linear motion, especially in precision processes like diagnostics or lab equipment.

5. Advantages:

• Compact and Precise: The SDA16 x 5M offers powerful performance in a small, space-efficient package, making it suitable for confined spaces and tasks requiring high precision.
• Smooth Operation: End-of-stroke cushioning and adjustable speed controls minimize noise, vibration, and wear, ensuring smooth, controlled actuation for a longer service life.
• Durability and Longevity: The anodized aluminum construction and high-quality seals ensure a long operational life, even under demanding conditions, with minimal maintenance required.
• Flexibility in Integration: Multiple mounting options allow for easy and flexible integration into a variety of systems or equipment setups.
• Cost-Effective: With its small size and powerful capabilities, the SDA16 x 5M is a cost-effective solution for precision tasks requiring short-range actuation.

6. Conclusion:

The Techno SDA16 x 5M Pneumatic Cylinder is a reliable, high-precision actuator designed for short-range linear motion in tight spaces. Its compact design, double-acting operation, adjustable speed control, and durable construction make it ideal for use in automation, robotics, material handling, and precision machinery. Whether it's for fine-tuned positioning, micro-adjustments, or small-scale clamping, this cylinder offers smooth, controlled, and low-maintenance performance that enhances productivity across a variety of industries.
