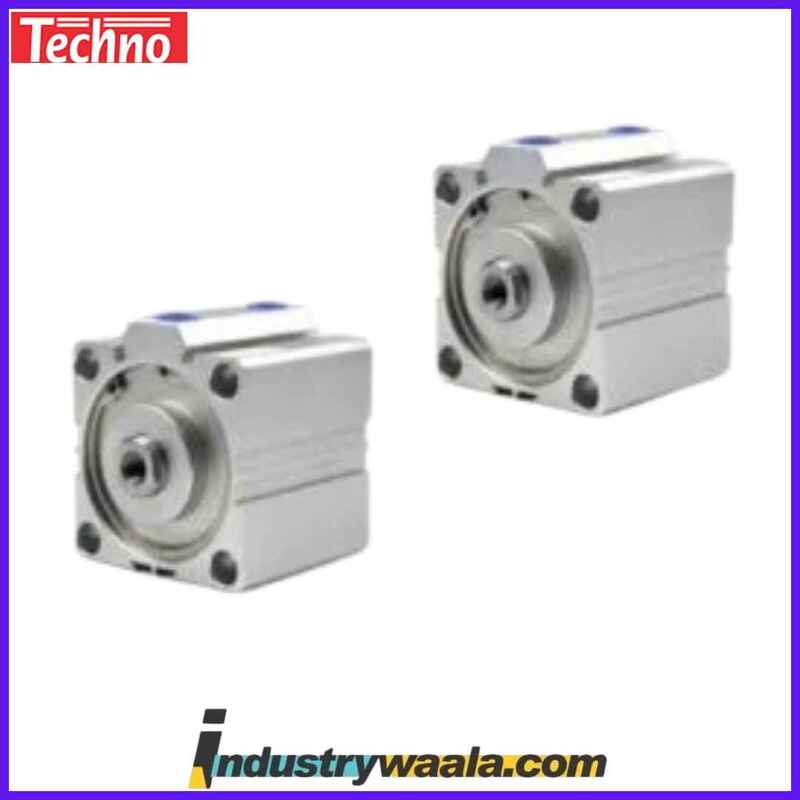

Techno SDA20 X 15F Pneumatic Cylinder

The Techno SDA20 X 15F Pneumatic Cylinder is a compact, double-acting actuator designed for precise linear motion in a variety of industrial applications. Featuring a 20 mm bore size and a 15 mm stroke length, this cylinder offers an excellent balance between size, force, and motion range, making it suitable for applications requiring short-range travel in confined spaces. It is particularly well-suited for use in systems where space is limited but precise and repeatable movement is still required.

Built for reliable performance over time, the SDA20 X 15F incorporates advanced sealing technology that minimizes air leakage, enhancing energy efficiency and extending the operational life of the cylinder. Constructed with durable materials like anodized aluminum for the body and stainless steel for the piston rod, this pneumatic cylinder is resistant to wear, corrosion, and damage from harsh environmental conditions, ensuring long-lasting and low-maintenance operation.

The SDA20 X 15F also offers adjustable speed control and a range of mounting options, allowing for easy integration into various industrial systems. Whether used in automation, robotics, material handling, or assembly lines, this cylinder provides smooth, controlled motion with high precision, ensuring that tasks such as positioning, clamping, and adjusting components are carried out efficiently.

Key Features:

1. Bore Size: 20 mm
   • The 20 mm bore size offers a balance of compactness and moderate force, making the cylinder well-suited for light to medium-duty applications where precision is key and space is a constraint.
2. Stroke Length: 15 mm
   • The 15 mm stroke length allows for controlled movement over a short range, ideal for tasks such as positioning, aligning, and adjusting components in compact spaces.
3. Double-Acting Design
   • The double-acting design applies air pressure to both sides of the piston, allowing for controlled extension and retraction. This results in precise and repeatable motion for both directions of travel.
4. Durable Construction
   • The cylinder body is made from anodized aluminum, providing both lightweight and corrosion-resistant qualities. The stainless steel piston rod adds durability, making it resistant to wear and abrasion.
5. Advanced Sealing Technology
   • The SDA20 X 15F features advanced sealing technology that reduces air leakage, improving energy efficiency and ensuring smooth operation over extended periods.
6. Operating Pressure Range
   • The cylinder operates effectively within an operating pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with standard pneumatic systems.
7. Temperature Range
   • The SDA20 X 15F can be used in temperatures ranging from -10°C to 80°C (14°F to 176°F), making it suitable for a variety of industrial environments, from cold to warm operating conditions.
8. Adjustable Speed Control
   • The cylinder comes with adjustable speed controls such as flow restrictors, enabling users to fine-tune the extension and retraction speeds. This feature is crucial for tasks requiring smooth, controlled motion.
9. Flexible Mounting Options
   • The cylinder offers multiple mounting configurations (e.g., flange mounting, through-hole mounting) that provide flexibility for easy integration into different systems, whether in automation, robotics, or material handling.

Applications:

1. Industrial Automation
   • The SDA20 X 15F is ideal for applications requiring precise movement in automated production lines, such as positioning, clamping, or sorting tasks in compact environments.
2. Robotics
   • In robotic systems, the cylinder is used for gripping, placing, or adjusting small components where precision and repeatability are critical.
3. Material Handling
   • The SDA20 X 15F is highly effective in material handling applications such as pick-and-place or sorting tasks in compact areas. Its short stroke makes it ideal for light material movement and handling.
4. Packaging and Assembly
   • In packaging and assembly systems, this cylinder is used for positioning, aligning, or activating small components, ensuring efficient processes in environments with limited space.
5. Electronics Manufacturing
   • The SDA20 X 15F is commonly used in electronics manufacturing, particularly for tasks such as placing, positioning, or adjusting delicate components that require precision and repeatability.
6. Medical Equipment
   • In medical device assembly and laboratory automation, the cylinder's precision makes it suitable for tasks like positioning and adjusting components in sensitive environments.

Advantages:

1. Compact Size with Moderate Force
   • The SDA20 X 15F offers a compact solution with a 20 mm bore and 15 mm stroke, making it ideal for applications where space is constrained but moderate force and precise movement are required.
2. Durability and Low Maintenance
   • The cylinder's durable construction and advanced sealing technology minimize maintenance needs, ensuring reliable performance with extended service intervals.
3. Energy Efficiency
   • The advanced seals and low air leakage design enhance the energy efficiency of the cylinder, reducing operational costs and improving the overall efficiency of the system.
4. Versatility in Integration
   • With adjustable speed control and multiple mounting options, the SDA20 X 15F can be seamlessly integrated into various industrial systems, providing flexibility in different applications.
5. Precise Motion Control
   • The cylinder’s ability to adjust the extension and retraction speed provides precise and controlled motion, making it perfect for tasks that require accuracy and repeatability.

Maintenance:

• Lubrication: Regular lubrication of the piston rod and seals is recommended to reduce friction and prevent wear, ensuring smooth and efficient operation.
• Inspection: Periodic inspections for air leakage, seal wear, and piston rod damage should be carried out to ensure the cylinder continues to perform optimally.
• Air Quality: To ensure the longevity of the cylinder, use clean, dry air and consider using air filters to prevent contamination that could affect performance.

Conclusion:

The Techno SDA20 X 15F Pneumatic Cylinder is a compact and versatile actuator that provides reliable and precise linear motion for a variety of industrial applications. With its 20 mm bore size and 15 mm stroke, it is perfectly suited for tasks that require short-range movement and high accuracy. The cylinder’s advanced sealing technology, adjustable speed control, and durable construction make it a low-maintenance and energy-efficient solution for automation, robotics, material handling, and assembly systems. Its flexibility, reliability, and precision make the SDA20 X 15F an excellent choice for companies looking for a high-performance pneumatic cylinder in space-constrained environments.
