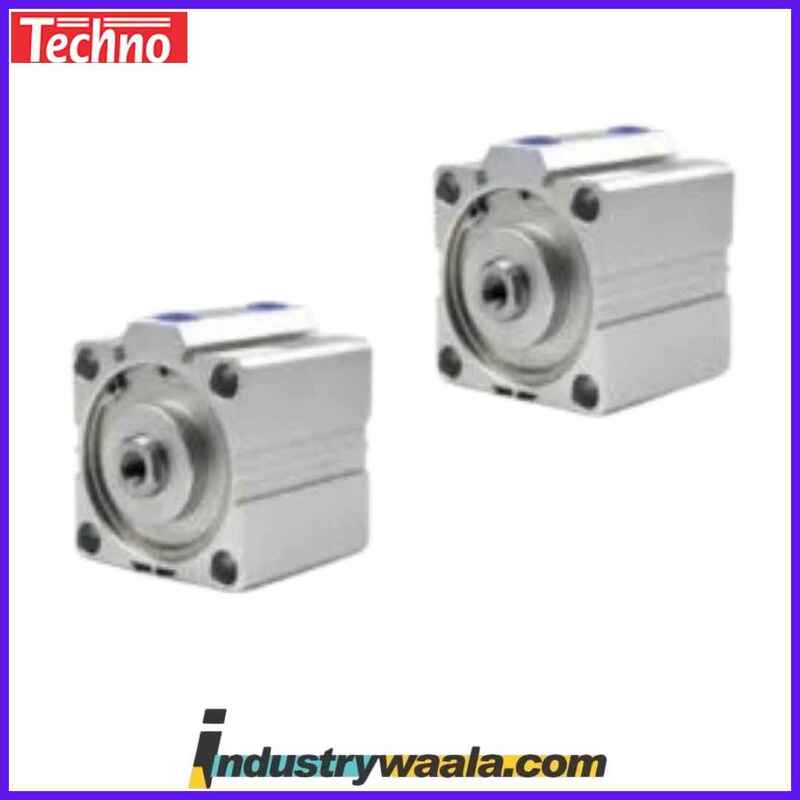

Techno SDA20 X 50F Pneumatic Cylinder

The Techno SDA20 X 50F Pneumatic Cylinder is a highly efficient and reliable double-acting actuator designed to provide precise linear motion for a variety of industrial applications. With a 20 mm bore size and a 50 mm stroke length, this cylinder is ideal for tasks that require moderate force and precise movement within a medium stroke range. It combines advanced sealing technology, robust construction, and versatility, making it well-suited for use in automation systems, robotics, material handling, and other applications where compactness and accuracy are crucial.

Key Features:

1. Bore Size: 20 mm
   • The 20 mm bore size strikes a balance between a compact form factor and adequate force output. This makes it ideal for applications that require moderate force while maintaining a small, space-efficient design.
2. Stroke Length: 50 mm
   • The 50 mm stroke length allows for sufficient movement within a controlled range. This stroke is ideal for tasks that require medium-range motion, making the cylinder suitable for applications in positioning, clamping, or light lifting tasks in various industrial systems.
3. Double-Acting Design:
   • The double-acting design means that the cylinder can be powered by air on both sides of the piston. This allows for smooth, controlled motion in both directions and makes it versatile for bidirectional movements. The ability to push and pull with equal force ensures efficient operation.
4. Durable Construction:
   • The piston rod and cylinder body are typically made of high-quality materials, such as stainless steel, to offer excellent resistance to wear, corrosion, and environmental conditions. This construction ensures durability, especially in applications where the cylinder is exposed to moisture, dust, or other harsh conditions.
5. Sealing Technology:
   • The Techno SDA20 X 50F incorporates advanced sealing technology to minimize air leakage and ensure consistent operation. This sealing prevents contaminants from entering the cylinder, ensuring smooth and efficient movement while extending the cylinder's lifespan.
6. Operating Pressure:
   • The cylinder operates within a pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with most standard pneumatic systems. This range provides enough force for many tasks while ensuring energy efficiency.
7. Temperature Range:
   • The Techno SDA20 X 50F is designed to perform effectively across a wide temperature range of -10°C to 80°C (14°F to 176°F). This broad temperature tolerance makes it adaptable to different environments, from industrial floors to more controlled spaces.
8. Speed Control:
   • Adjustable speed control options, such as flow restrictors or valves, allow for precise control of the cylinder’s extension and retraction speeds. This is crucial for applications where smooth, controlled motion is essential to avoid damage or ensure precision.
9. Mounting Flexibility:
   • The cylinder offers versatile mounting options, including flange mounts, through-hole mounts, and other configurations. This flexibility makes it easy to integrate the SDA20 X 50F into a wide range of systems, including automated machinery, conveyor systems, and robotics.

Applications:

1. Industrial Automation:
   • The Techno SDA20 X 50F is widely used in industrial automation, especially for applications that require medium-range movement with a compact actuator. It can be used in tasks such as clamping, positioning, and pushing parts in automated production lines, assembly lines, and material handling systems.
2. Robotics:
   • In robotic systems, the cylinder is ideal for providing precise linear motion. Its 20 mm bore size and 50 mm stroke length allow it to perform small yet controlled movements, making it suitable for robotic arms, grippers, or other robotic actuation tasks that require moderate force and accuracy.
3. Material Handling:
   • The SDA20 X 50F can be used in material handling systems to move, position, or lift parts within an assembly or packaging system. Its medium stroke length makes it a great option for transferring small to medium-sized components in systems such as conveyors, sorters, or feeders.
4. Packaging and Assembly:
   • In packaging lines, the SDA20 X 50F is used for tasks such as pushing, lifting, or positioning components with a precise, short-range motion. The cylinder can also be used in assembly processes where moderate force is needed for operations like pressing or placing parts.
5. Medical Equipment:
   • The precise control of motion makes the SDA20 X 50F suitable for medical and laboratory equipment. It can be used in tasks like moving or positioning small components, operating equipment with delicate mechanisms, or dispensing materials in a controlled manner.
6. Electronics Manufacturing:
   • In electronics manufacturing, the Techno SDA20 X 50F can be used for precise positioning of small electronic components during assembly. Its short stroke and compact size make it well-suited for tasks such as placing, aligning, or testing small parts in automated systems.

Advantages:

1. Compact and Efficient:
   • The SDA20 X 50F is small yet powerful, delivering medium-range linear motion in a compact design. Its 20 mm bore and 50 mm stroke make it efficient for applications that require moderate force and space optimization.
2. Precise Control:
   • The cylinder’s short stroke length and ability to adjust speed provide excellent control over the movement, ensuring accurate positioning and smooth motion in a wide range of applications.
3. Durability and Reliability:
   • Constructed from high-strength materials like stainless steel and featuring advanced sealing technology, the cylinder is built to last. Its ability to withstand wear, environmental conditions, and regular use makes it a reliable choice for many industries.
4. Energy Efficient:
   • The double-acting design ensures efficient air usage, minimizing leakage and waste. The SDA20 X 50F provides energy savings while maintaining effective operation and precision.
5. Versatility in Installation:
   • With its variety of mounting options, the cylinder can be easily integrated into various systems, whether in robotics, automation, or material handling. This makes it adaptable for a wide range of industrial applications.

Maintenance:

• Lubrication: Regular lubrication of the piston rod and seals is recommended to reduce friction and wear, ensuring smooth and efficient operation.
• Inspection: Periodically check the cylinder for signs of wear, air leakage, or damage. Inspect the seals and piston rod to ensure optimal performance.
• Air Quality: The cylinder should be operated with clean, dry air to prevent contamination and damage to internal components, which can negatively affect performance.

Conclusion:

The Techno SDA20 X 50F Pneumatic Cylinder is a durable, efficient, and compact actuator designed for a wide variety of applications requiring medium-range linear motion. Its 20 mm bore size and 50 mm stroke length make it a versatile solution for industrial automation, robotics, material handling, and packaging applications. With its reliable construction, adjustable speed control, and energy-efficient operation, the SDA20 X 50F delivers precision and performance, making it an excellent choice for many industries needing moderate force in a compact design.
