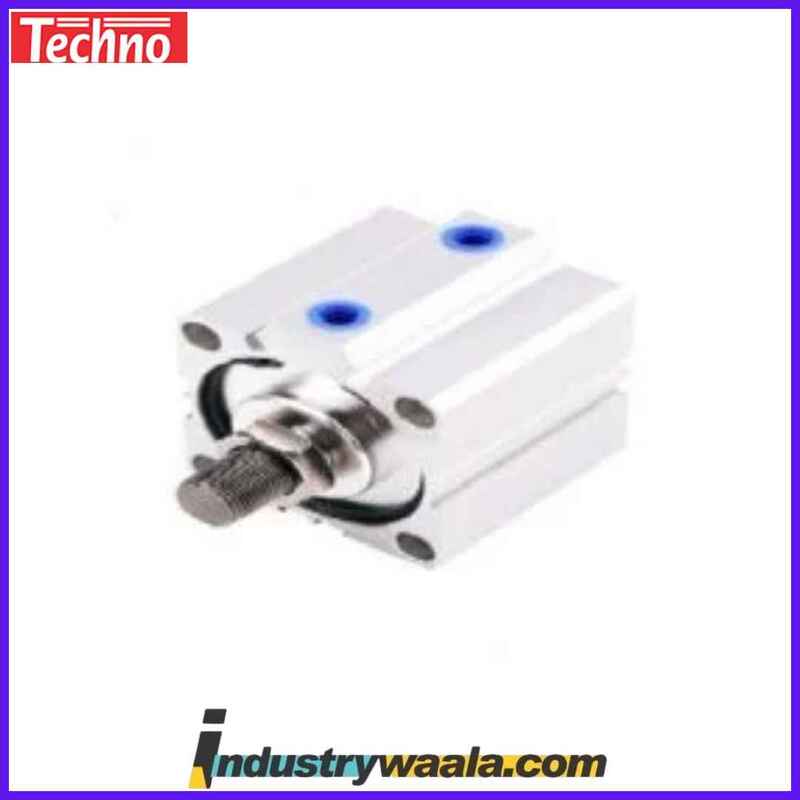

Techno SDA20 X 50M Pneumatic Cylinder

The Techno SDA20 x 50M Pneumatic Cylinder is a versatile and high-performance double-acting actuator designed to provide precise linear motion in applications where space and performance requirements are critical. With a 20mm bore diameter and a 50mm stroke length, this pneumatic cylinder is perfect for systems that demand short-range, reliable movement. Its compact size, coupled with powerful actuation, makes it ideal for tasks in automation, robotics, material handling, and precision machinery. Built with high-quality materials and advanced features like adjustable speed control and end-of-stroke cushioning, it ensures long-lasting performance, smooth operation, and minimal maintenance.

Detailed Description:

1. Overview:

• Model: Techno SDA20 x 50M
• Type: Double-Acting Pneumatic Cylinder
• Bore Diameter (SDA20): 20 mm
• Stroke Length (50M): 50 mm
  • The SDA20 refers to the 20mm bore diameter, providing a balance of compact design and functional force. The 50M indicates a 50mm stroke length, making it ideal for medium-range actuation, which is suitable for systems that require precise movement but do not need the extended travel provided by larger cylinders.

2. Key Features:

• Compact Design with High Force:
  • The 20mm bore size allows for a compact cylinder that can fit into tight spaces, while still providing enough force to perform tasks such as positioning, pressing, and moving parts. The 50mm stroke length makes it versatile for medium-range movements, perfect for applications that do not require long travel distances.
• Double-Acting Operation:
  • The SDA20 x 50M is a double-acting cylinder, which means it uses compressed air to move the piston in both directions: extension and retraction. This ensures smooth, controlled movements in both directions, increasing the cylinder's versatility in various industrial applications.
• Durable Construction:
  • Built with high-quality anodized aluminum, the cylinder is both lightweight and durable. The anodized surface provides excellent resistance to corrosion and wear, ensuring the cylinder performs well even in harsh environments. The piston seals are made from high-quality materials to minimize friction and ensure longevity.
• End-of-Stroke Cushioning:
  • The cylinder is equipped with adjustable end-of-stroke cushioning, which slows down the piston as it reaches the end of its stroke. This cushioning feature reduces the impact at the end of each cycle, decreasing mechanical stress on the cylinder and surrounding components, ensuring smoother operation and less wear and tear.
• Adjustable Speed Control:
  • The SDA20 x 50M features the ability to adjust the speed of both the extension and retraction strokes. This allows users to fine-tune the motion, which is particularly useful when delicate or precise movements are required, such as in robotic applications or sensitive material handling tasks.
• Multiple Mounting Options:
  • The cylinder comes with several mounting options, such as foot, flange, and pivot mounts, allowing for flexible installation depending on the specific needs of the application. This flexibility in mounting ensures easy integration into various automation systems and machinery.

3. Specifications:

• Bore Diameter: 20 mm
• Stroke Length: 50 mm
• Operating Pressure Range: Typically 1.5 bar to 10 bar (150 to 1000 kPa)
• Temperature Range: -10°C to 70°C, depending on the seal materials and application conditions.
• Cushioning: Adjustable cushioning at both ends of the stroke for smooth operation.
• Materials: Anodized aluminum body, durable seals, and corrosion-resistant components.
• Mounting Options: Foot, flange, and pivot mounts for flexible installation.

4. Applications:

The Techno SDA20 x 50M Pneumatic Cylinder is ideal for medium-range actuation where space efficiency and precision are critical. Common applications include:

• Automation Systems: Used for precise tasks like pick-and-place, packaging, sorting, and assembly in tight spaces, where short, controlled movement is required.
• Material Handling: Perfect for use in conveyor systems, small parts feeders, and other handling systems where compact, reliable actuation is necessary.
• Robotics: Used in robotic arms, grippers, or other robotic systems requiring medium-range, controlled movement to handle or position parts.
• Medical Equipment: Applied in laboratory automation, precise medical device handling, and test equipment where small, controlled movements are needed.
• Precision Machinery: Ideal for pressing, clamping, or positioning parts in machinery where accuracy and repeatability are essential.

5. Advantages:

• Space-Efficient Design: The 20mm bore and 50mm stroke provide a space-saving solution without compromising on force or functionality, making it perfect for compact systems and machinery.
• Smooth, Controlled Movement: The adjustable speed control and cushioning ensure smooth operation, minimizing wear and improving the longevity of both the cylinder and the surrounding system.
• Durability: Constructed with anodized aluminum and high-quality seals, the cylinder is built to withstand long-term use with minimal maintenance, reducing downtime and repair costs.
• Versatile Integration: The availability of multiple mounting options allows for easy integration into various systems, offering flexibility in installation.
• Cost-Effective: The SDA20 x 50M provides an affordable solution for systems requiring medium-range actuation with precise motion control, offering great value for money.

6. Conclusion:

The Techno SDA20 x 50M Pneumatic Cylinder is an ideal solution for medium-range actuation in compact environments. Its combination of a 20mm bore and 50mm stroke length allows for precise, controlled movement, making it perfect for a wide variety of applications in automation, robotics, material handling, and precision machinery. With features such as adjustable speed control, end-of-stroke cushioning, and durable construction, this pneumatic cylinder ensures long-lasting, smooth operation and minimal maintenance, offering both high performance and cost efficiency for users.
