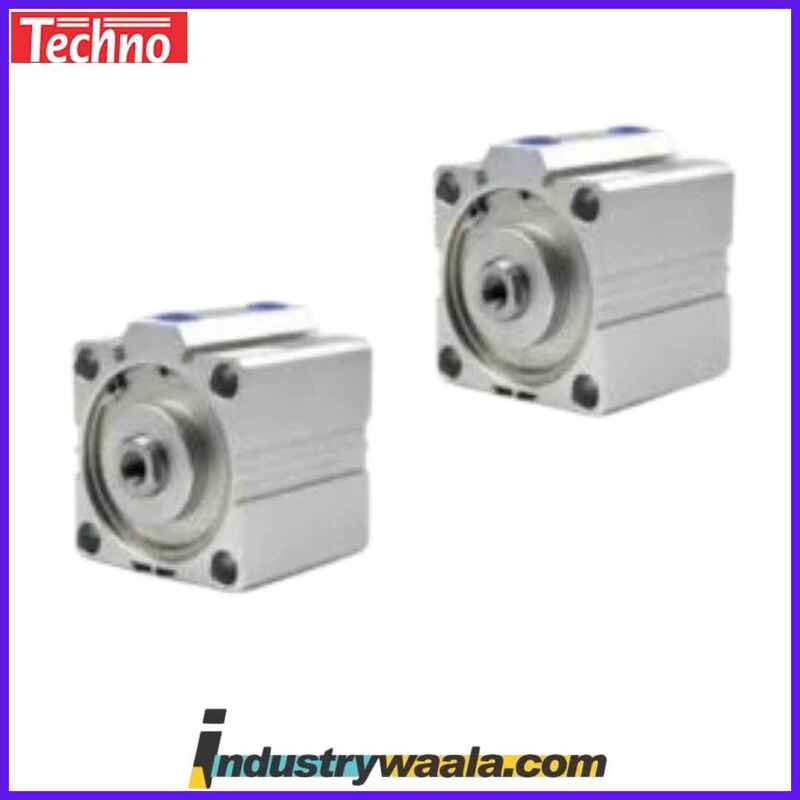

Techno SDA25 X 100F Pneumatic Cylinder

The Techno SDA25 X 100F Pneumatic Cylinder is a robust and reliable pneumatic actuator designed for high-performance linear motion applications. With a 25 mm bore size and a 100 mm stroke length, this cylinder is ideal for a variety of industrial uses, including automation, robotics, material handling, and precision positioning tasks. The cylinder's design features advanced sealing technology and durable construction to ensure long-lasting, efficient operation in demanding environments.

Below is a detailed breakdown of the Techno SDA25 X 100F Pneumatic Cylinder:

Features:

1. Bore Size: 25 mm
   • The 25 mm bore size refers to the internal diameter of the cylinder tube. This size offers a balance between force output and compact design, providing sufficient power for a wide range of applications without requiring excessive space.
2. Stroke Length: 100 mm
   • The 100 mm stroke length provides a longer linear motion, making the cylinder suitable for applications requiring moderate movement distance. This stroke length offers more flexibility in use, allowing it to perform tasks that need a greater range of motion than shorter cylinders.
3. Double-Acting Design:
   • The double-acting design of the cylinder means that it is powered by compressed air in both directions: extending and retracting. This mechanism ensures that the cylinder can deliver smooth, consistent motion in both directions, making it versatile for a variety of tasks.
4. Piston Rod:
   • The piston rod is typically made from high-strength stainless steel, which ensures durability and resistance to corrosion. This enhances the lifespan of the cylinder, even in harsh or industrial environments.
5. Advanced Sealing Technology:
   • The cylinder is equipped with advanced sealing technology, which helps minimize air leakage, reduces energy loss, and ensures smooth operation over a long period. The seals also help prevent dirt, moisture, and other contaminants from entering the cylinder, thus enhancing its reliability.
6. Operating Pressure:
   • The cylinder operates within a pressure range of 1 to 10 bar (14.5 to 145 psi). The pressure range determines the force the cylinder can generate, and with this range, the Techno SDA25 X 100F is suitable for a wide variety of applications that require moderate to high force.
7. Temperature Range:
   • The cylinder can function effectively within an operational temperature range of approximately -10°C to 80°C (14°F to 176°F), making it versatile for use in various industrial environments. Some models may have an extended temperature range depending on the materials and seals used.
8. Speed Control:
   • The cylinder may be equipped with speed control valves or adjustable flow restrictors, allowing users to regulate the extension and retraction speeds of the piston. This feature is especially valuable in applications where precise timing and smooth motion are crucial.
9. Mounting Options:
   • The Techno SDA25 X 100F comes with a variety of mounting configurations, such as flange mounts, through-hole mounts, or other custom mounts depending on the specific application. This flexibility ensures that the cylinder can be integrated into different machines or systems without requiring extensive modifications.

Applications:

1. Automation Systems:
   • The Techno SDA25 X 100F is ideal for use in automated production lines where precise, repeatable motion is required. Whether in material handling, assembly, or packaging, the cylinder can move parts, position components, or perform repetitive tasks with high reliability and accuracy.
2. Robotics:
   • In robotic applications, the cylinder can be used for controlled linear movements in robotic arms, grippers, or positioning devices. Its long stroke of 100 mm provides flexibility for tasks that require significant but controlled movement.
3. Material Handling:
   • The cylinder is well-suited for material handling systems in factories or warehouses, where it can be used to push, pull, or position materials. Its versatility and adjustable speed make it ideal for moving goods along conveyors or for loading and unloading tasks.
4. Textile and Food Processing:
   • The Techno SDA25 X 100F can be used in industries such as textiles or food processing, where it is employed in tasks like feeding material into machines, cutting, folding, or packaging. Its precision and smooth motion are essential for maintaining the quality and efficiency of these processes.
5. Packaging and Assembly:
   • The cylinder is widely used in packaging lines for tasks such as sealing, positioning, or assembling components. Its precise linear motion helps improve the efficiency of packaging processes and ensures consistent product quality.
6. Medical and Laboratory Equipment:
   • In medical or laboratory automation, the Techno SDA25 X 100F can be used in precision equipment for tasks like moving components, opening and closing lids, or controlling test apparatus. The cylinder's ability to perform small, controlled movements makes it ideal for sensitive environments.

Advantages:

1. Compact Yet Powerful:
   • Despite its 25 mm bore size, the cylinder can generate sufficient force for a wide range of industrial tasks. Its design allows for efficient use of space while still delivering reliable and powerful performance.
2. Durability and Longevity:
   • The high-quality construction materials and advanced seals enhance the durability of the cylinder, ensuring it can withstand harsh environments and demanding applications over a long operational life.
3. Versatility:
   • With its 100 mm stroke length and customizable mounting options, the cylinder is highly versatile and can be used in a wide range of applications, from simple automation tasks to more complex robotic or material handling systems.
4. Efficient Performance:
   • The double-acting design ensures that the cylinder operates efficiently in both directions, reducing air consumption and minimizing energy loss. The sealing technology also prevents air leakage, further improving energy efficiency.
5. Easy Integration:
   • The various mounting options and flexible design allow for easy integration into existing systems without requiring significant adjustments, making it ideal for retrofitting or building new automation lines.

Maintenance:

• Lubrication: Regular lubrication of the piston rod and seals ensures smooth operation and reduces wear. It’s important to use the correct type of lubrication to prevent contamination and ensure long-term functionality.
• Inspection: Periodic inspection of seals, piston rods, and mounting components is essential to detect any signs of wear, damage, or leaks. Timely maintenance ensures the continued reliability of the cylinder.
• Air Quality: Clean, dry compressed air should always be used to prevent contamination of internal components, which could cause malfunctions or reduce the cylinder’s lifespan.

Conclusion:

The Techno SDA25 X 100F Pneumatic Cylinder offers a powerful, efficient, and versatile solution for linear motion in a variety of industrial applications. With a 25 mm bore size and 100 mm stroke length, it provides the ideal balance between power and compactness, making it suitable for both small-scale and high-demand operations. Its double-acting design, robust construction, and customizable options make it a reliable choice for applications in automation, robotics, material handling, packaging, and more. The cylinder’s durability, low maintenance needs, and high efficiency make it an excellent long-term investment for industries requiring precise, controlled movement.
