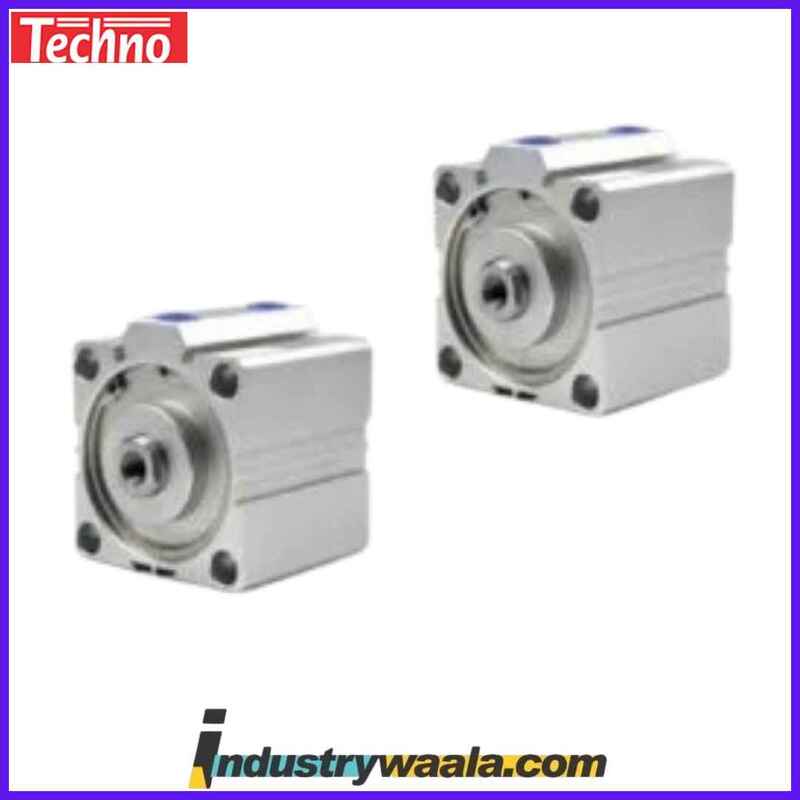

Techno SDA50 X 20F Pneumatic Cylinder

The Techno SDA50 X 20F Pneumatic Cylinder is a robust and efficient pneumatic actuator designed for applications that require controlled, linear motion. With a 50mm bore diameter and a 20mm stroke length, this double-acting cylinder offers a balance of power and precision, making it ideal for a wide range of industrial and automation tasks. It is engineered for high performance, providing smooth operation, reliable force, and durability in demanding environments.

Key Features:

• 50mm Bore Diameter: The 50mm bore ensures a powerful stroke while maintaining compactness for ease of installation in a variety of settings. The bore size makes it suitable for moderate force requirements in medium-duty applications.
• 20mm Stroke Length: The 20mm stroke length is designed for applications requiring short, precise movements. It offers accurate and controlled displacement, ideal for fine-tuned processes such as assembly, picking, positioning, and clamping.
• Double-Acting Operation: The cylinder operates in both directions—extend and retract—providing versatility in applications requiring continuous movement. This dual-function operation ensures efficient and reliable performance.
• Adjustable Cushioning: With adjustable cushioning at both ends, the cylinder minimizes impact and reduces mechanical wear at the start and end of each stroke. This feature ensures smoother operation, prolongs service life, and enhances overall system efficiency.
• Anodized Aluminum Body: The cylinder's body is made from anodized aluminum, providing excellent resistance to corrosion, wear, and harsh environmental conditions. This robust construction ensures long-lasting performance, making it ideal for both indoor and outdoor industrial environments.
• Flexible Mounting Options: The cylinder offers multiple mounting configurations, including foot and flange mounts, making it easy to integrate into various systems. Its flexibility allows for easy installation in diverse mechanical systems, such as automation, material handling, or robotic applications.
• High-Quality Seals: The cylinder is equipped with high-quality seals that protect it from contaminants like dirt, dust, and moisture. This feature ensures long-term reliability and minimal maintenance, even in harsh industrial conditions.

Applications:

The Techno SDA50 X 20F Pneumatic Cylinder is ideal for a wide variety of industrial applications, especially where precise, short movements are necessary. Some common uses include:

• Material Handling: It can be used in material handling systems to push, pull, lift, or position components or products along conveyor belts, sorting systems, or assembly lines.
• Automation and Robotics: The cylinder is commonly used in automated systems and robotics for applications such as positioning, clamping, lifting, and picking, where precision and smooth operation are required.
• Clamping and Positioning: This cylinder is well-suited for clamping and positioning tasks in industrial machinery, such as presses, CNC machines, and fixtures.
• Assembly Lines: The cylinder can be used in assembly lines for the precise movement of parts, components, and products, ensuring efficient production processes.

Technical Specifications:

• Bore Diameter: 50mm
• Stroke Length: 20mm
• Operating Pressure Range: 1.5 to 10 bar (150 to 1000 kPa)
• Temperature Range: -10°C to 70°C (depending on the seal material)
• Mounting Options: Foot, flange, and other customizable configurations
• Cushioning: Adjustable at both ends for reduced impact
• Seals: High-quality seals to protect against dirt and moisture
• Materials: Anodized aluminum body for corrosion resistance
• Speed Control: Adjustable flow control for precise movement speed

Advantages:

• Precision and Smooth Operation: The adjustable cushioning ensures smooth, controlled motion with minimal shock, reducing wear and extending the life of both the cylinder and the system.
• Durability: The anodized aluminum body ensures that the cylinder is resistant to corrosion, extending its service life and ensuring reliable operation in a wide range of environments.
• Minimal Maintenance: The high-quality seals and protective design reduce the risk of contaminants entering the cylinder, leading to fewer maintenance needs and longer intervals between servicing.
• Versatility: The cylinder’s flexible mounting options and compatibility with various systems make it a versatile solution for different industries, including automation, material handling, robotics, and more.

Conclusion:

The Techno SDA50 X 20F Pneumatic Cylinder offers a combination of durability, precision, and versatility, making it an ideal choice for applications requiring short, controlled movements. Its adjustable cushioning, high-quality seals, and anodized aluminum body make it a reliable and low-maintenance option for a wide range of industrial tasks. Whether used in material handling, robotics, or assembly lines, this pneumatic cylinder provides smooth and efficient performance, making it an excellent addition to any automation system.
