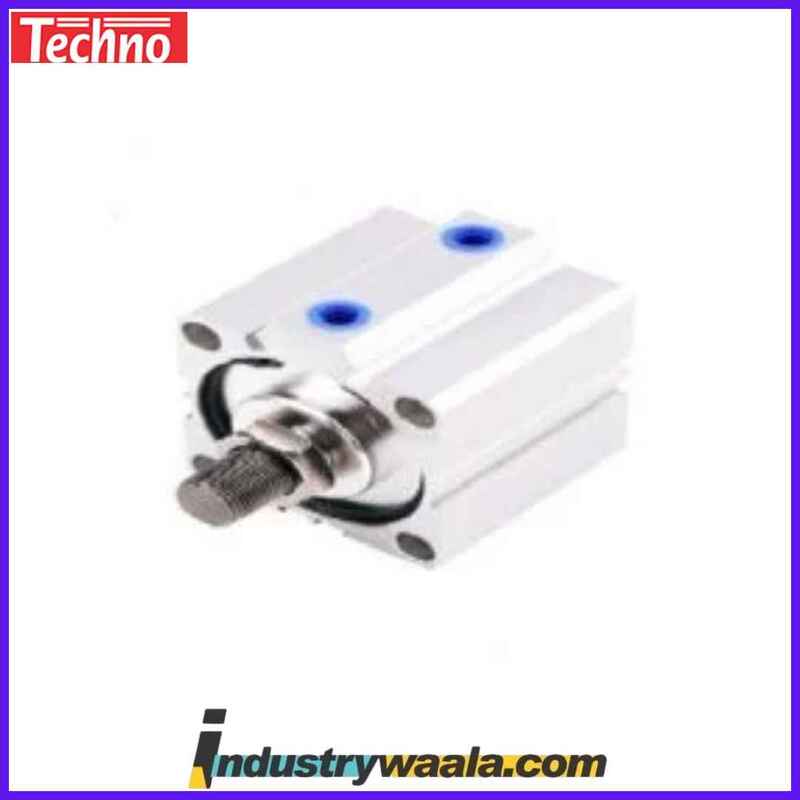

Techno SDA80 X 40M Pneumatic Cylinder

The Techno SDA80 X 40M Pneumatic Cylinder is a double-acting pneumatic actuator designed for applications that require high force output and precise linear motion. With an 80 mm bore and 40 mm stroke, this cylinder is ideal for tasks requiring moderate to heavy-duty force and accurate movement in industrial systems such as automation, robotics, material handling, and packaging.

Key Features:

1. High Force Output: The 80 mm bore provides a significant force, making this cylinder ideal for tasks involving moderate to heavy-duty loads. The 40 mm stroke allows for precise positioning and smooth, controlled motion.
2. Double-Acting Design: The double-acting mechanism ensures efficient performance in both extension and retraction cycles, providing reliable actuation for a wide range of industrial tasks.
3. Durable Construction: The anodized aluminum body offers corrosion resistance, while the hardened steel piston rod enhances durability, making the cylinder well-suited for high-cycle applications and demanding industrial environments.
4. Low Maintenance: Designed with high-performance seals, the SDA80 X 40M reduces friction and wear, minimizing the need for regular maintenance and increasing the operational lifespan of the cylinder.
5. Energy Efficiency: The cylinder operates with minimal air consumption, thanks to low-friction seals and high-quality materials that ensure energy-efficient operation.
6. Versatile Mounting Options: The SDA80 X 40M offers various mounting configurations, including foot mount, flange mount, and custom options, allowing for easy integration into different systems and machine layouts.
7. Optional Magnetic Piston: The optional magnetic piston allows for position sensing, enabling real-time feedback for automated systems that require precise monitoring and control of the cylinder's position.
8. Wide Pressure Range: The cylinder operates effectively within a pressure range of 1.5 to 8 bar, making it adaptable to different pneumatic systems and environmental conditions.

Applications:

The Techno SDA80 X 40M Pneumatic Cylinder is suitable for various industrial applications where moderate to high force and precision control are required:

• Automation Systems: Ideal for use in automated assembly lines, robotic arms, pick-and-place operations, and conveyor systems, where accurate, repeatable motion is needed.
• Material Handling: Used in material handling systems for tasks such as sorting, positioning, and conveying products, the cylinder’s moderate force and precise stroke length are perfect for these applications.
• Packaging: Perfect for packaging systems where products need to be precisely aligned, pressed, or moved during packaging operations, such as in carton sealing or bag filling.
• Robotics: Used in robotic arms or automated manufacturing systems where accurate positioning and precise movement are required for assembly, handling, or inspection.
• Heavy Machinery: Ideal for applications in presses, jigs, or other machinery that requires moderate force for tasks such as pressing, lifting, or aligning heavy components.

Specifications:

• Bore Size: 80 mm
• Stroke Length: 40 mm (customizable)
• Operating Pressure: 1.5 to 8 bar
• Materials: Anodized aluminum body, hardened steel piston rod, high-performance seals
• Magnetic Piston: Optional for position sensing
• Temperature Range: Suitable for standard industrial environments
• Mounting Options: Foot, flange, and custom mounting configurations

Performance Characteristics:

• Force Output: The 80 mm bore generates a powerful force output for tasks that involve moderate to heavy-duty loads, making it ideal for demanding applications.
• Precision Control: With an 80 mm bore and 40 mm stroke, the cylinder offers accurate, controlled motion for applications requiring fine positioning.
• Energy Efficiency: The cylinder’s low-friction seals reduce energy consumption, allowing for efficient operation and lowering operational costs.
• Versatile Integration: With multiple mounting options and an optional magnetic piston, the SDA80 X 40M can be easily integrated into a variety of systems and applications.

Installation and Maintenance:

• Installation: The cylinder offers easy installation with a range of mounting configurations, such as foot and flange mounts. Its compact design allows it to be easily integrated into existing systems, making it an adaptable solution for various machine layouts.
• Maintenance: The low-maintenance design of the SDA80 X 40M ensures minimal downtime and long-term reliability. Routine inspections of the piston rod and seals are recommended to ensure optimal performance.

Conclusion:

The Techno SDA80 X 40M Pneumatic Cylinder is a reliable and efficient solution for industrial applications that require high force output, precise motion control, and durability. Its 80 mm bore and 40 mm stroke make it ideal for tasks such as automation, material handling, robotics, and packaging, where accurate, repeatable motion is needed. With its energy-efficient operation, low-maintenance design, and versatile mounting options, this cylinder offers a high-performance solution for various high-cycle industrial environments. Whether integrated into robotic systems or conveyor systems, the SDA80 X 40M ensures consistent, reliable performance for a wide range of demanding applications.
