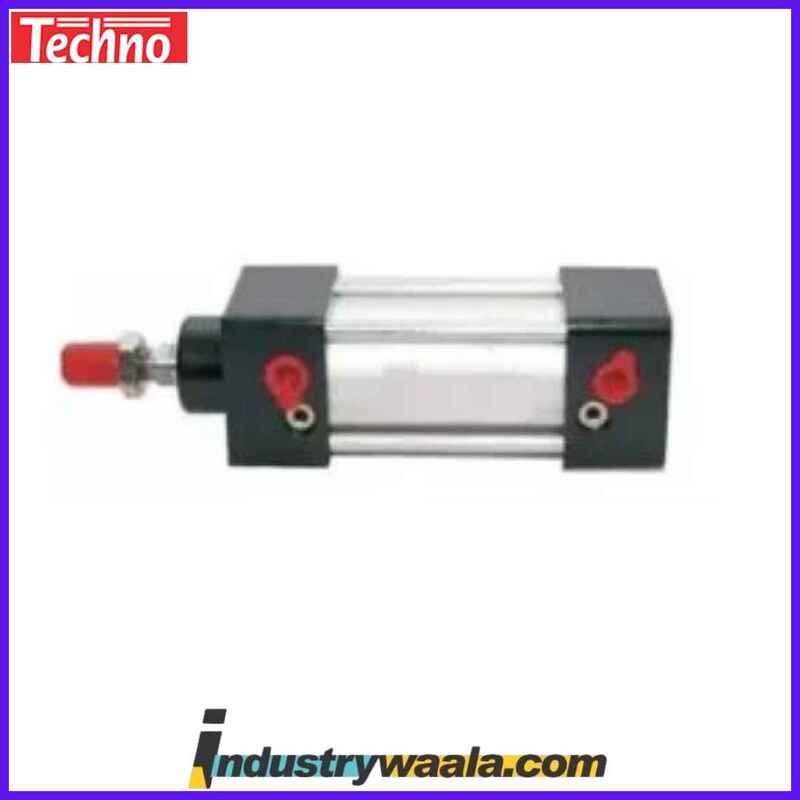

Techno SU100 X 1000-S Pneumatic Cylinder Series

The Techno SU100 X 1000-S Pneumatic Cylinder Series is a high-performance, double-acting pneumatic cylinder designed for applications that require long travel distances combined with high force output. With a 100 mm bore diameter and a 1000 mm stroke length, this cylinder is ideal for tasks that demand extended linear motion over a significant distance. It is widely used in industries such as material handling, automation, and manufacturing, where consistent, powerful motion is needed over a long stroke.

1. Model Overview:

• Series: SU100 X 1000-S
• Type: Double-acting pneumatic cylinder
• Bore Diameter: 100 mm
• Stroke Length: 1000 mm (custom stroke lengths available)
• Action Type: Double-acting (uses compressed air for both extension and retraction)
• Function: Converts compressed air into precise linear motion for tasks requiring extended travel over a long distance.

2. Key Features:

• Stroke Length (S):
  • The "1000" in the model name indicates a 1000 mm stroke length, which allows for extended linear motion. This makes the cylinder perfect for applications that require long-distance travel without the need for multiple cylinders or additional mechanical systems.
• Bore Diameter (B):
  • The 100 mm bore diameter ensures that the cylinder can generate a substantial amount of force, making it suitable for heavy-duty tasks while maintaining smooth and reliable motion over a long stroke length.
• Double-Acting Cylinder:
  • As a double-acting cylinder, the SU100 X 1000-S operates with compressed air for both extension and retraction of the piston. This design provides consistent and reliable movement in both directions, making it ideal for a variety of industrial applications requiring bidirectional motion.
• Durable Construction:
  • Designed for demanding industrial environments, the SU100 X 1000-S features a robust construction with high-quality seals and materials. This ensures the cylinder can withstand heavy use, reducing wear and extending the life cycle of the product.
• Energy Efficiency:
  • The cylinder is engineered to minimize air consumption while providing maximum performance. Its energy-efficient design helps to reduce operational costs and contribute to sustainability in industrial operations.

3. Specifications:

• Bore Diameter (B): 100 mm
• Stroke Length (S): 1000 mm (customizable stroke lengths available)
• Operating Pressure: Typically ranges from 2 to 10 bar, compatible with standard pneumatic systems.
• Operating Temperature Range: Can operate in environments ranging from -10°C to 70°C, ensuring versatility in various industrial settings.
• Air Consumption: Designed to optimize air use while maintaining peak efficiency, helping reduce energy costs.

4. Performance and Applications:

• Speed Control:
  • Adjustable speed controls allow for fine-tuned regulation of both the extension and retraction speeds. This feature is especially useful for applications that require controlled or slow movements, ensuring safety and precision.
• Applications:
  • Material Handling: The SU100 X 1000-S is ideal for long-distance movement tasks in material handling systems, such as lifting, pushing, or moving heavy components over extended ranges.
  • Automation Systems: In automated processes, robotic arms, and conveyor systems, this cylinder provides the precise linear motion necessary for long travel distances in sorting, positioning, and assembly tasks.
  • Clamping and Positioning: Its long stroke length makes it suitable for clamping and positioning applications in industrial environments where high precision and extended travel are essential.
  • Packaging and Sorting: The cylinder can be integrated into packaging lines to move large or heavy items over long distances, streamlining production workflows.
  • Machine Tooling: The SU100 X 1000-S is also well-suited for machine tooling applications that require long stroke lengths, such as loading and unloading parts in machining centers or automated workstations.
• Energy Efficiency:
  • The design of the SU100 X 1000-S minimizes air consumption, providing optimal performance with less energy use, reducing overall operating costs and contributing to environmentally-friendly practices.

5. Advantages:

• Long Stroke Length: The 1000 mm stroke allows for extended linear motion, ideal for tasks requiring significant travel distance without the need for multiple cylinders.
• High Force Output: With a 100 mm bore diameter, this cylinder generates substantial force, making it suitable for heavy-duty applications that require high force over long distances.
• Versatile: The SU100 X 1000-S is compatible with various mounting options and can be customized to meet the specific needs of different industrial applications.
• Energy Efficient: Its efficient air consumption helps reduce operational energy costs, making it a cost-effective and environmentally-friendly choice.
• Low Maintenance: The cylinder’s durable design, including high-quality seals and materials, ensures long-lasting performance with minimal maintenance requirements.

6. Maintenance:

• Lubrication: Regular lubrication of the piston and rod is recommended to ensure smooth operation and reduce friction.
• Seal Inspection: Periodic inspection of seals is necessary to prevent air leaks, which can reduce efficiency and performance. Replacing seals when necessary is crucial to maintaining optimal operation.
• Routine Inspections: Regular visual inspections for damage or wear should be performed to ensure that the cylinder is operating effectively. This helps prevent unexpected failures and ensures long-term reliability.

Conclusion:

The Techno SU100 X 1000-S Pneumatic Cylinder Series is a powerful and reliable solution for applications requiring extended linear motion and high force output. With a 100 mm bore diameter and a 1000 mm stroke length, it is designed for heavy-duty tasks in material handling, automation, clamping, and machine tooling where long travel distances are needed. Its durable construction, energy-efficient design, and low-maintenance requirements make it an ideal choice for industries that require consistent, high-performance motion over extended ranges. The SU100 X 1000-S is versatile, cost-effective, and built to provide reliable service in demanding industrial environments.
