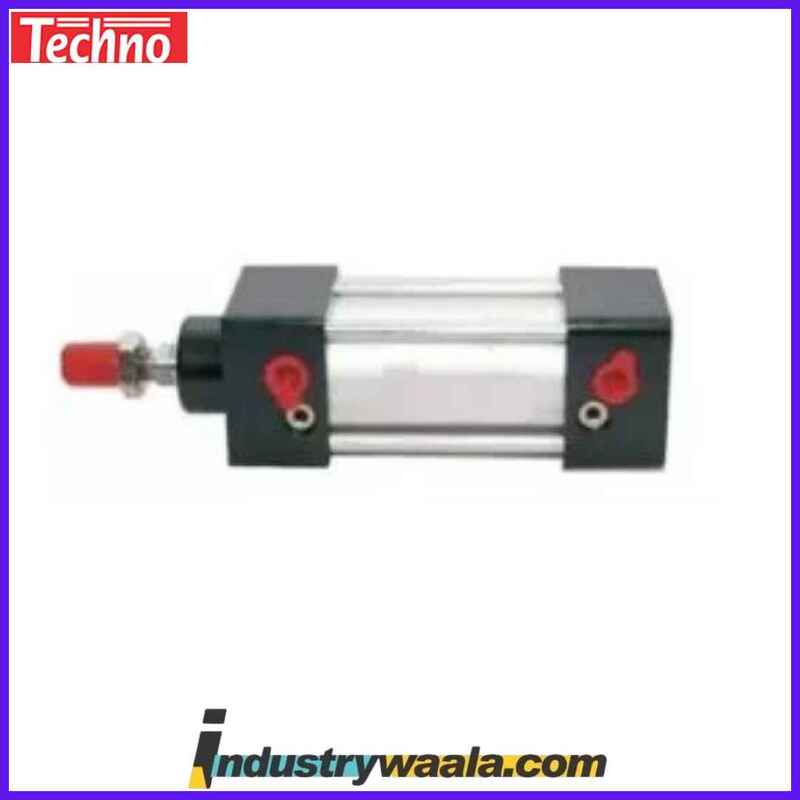

Techno SU100 X 125-S Pneumatic Cylinder Series

The Techno SU100 X 125-S Pneumatic Cylinder Series is a versatile and high-performance double-acting pneumatic cylinder designed to meet the needs of a variety of industrial applications. With a 100 mm bore diameter and a 125 mm stroke length, this cylinder is well-suited for tasks that require precise linear motion over a medium range. It is commonly used in material handling, automation, clamping, and positioning applications where moderate stroke length and high force output are needed.

1. Model Overview:

• Series: SU100 X 125-S
• Type: Double-acting pneumatic cylinder
• Bore Diameter: 100 mm
• Stroke Length: 125 mm (customizable stroke lengths available)
• Action Type: Double-acting (uses compressed air for both extension and retraction)
• Function: Provides linear motion for applications requiring controlled movement with moderate travel distances.

2. Key Features:

• Stroke Length (S):
  • The 125 mm stroke length offers an ideal balance between compact design and the ability to cover medium-range distances in industrial processes. This makes it suitable for tasks that require precise, repeatable motion but do not need extensive stroke lengths.
• Bore Diameter (B):
  • The 100 mm bore diameter provides sufficient force generation, making this cylinder ideal for moderate-to-heavy-duty applications. It ensures that the SU100 X 125-S can handle the demands of lifting, pushing, and pulling tasks with ease.
• Double-Acting Cylinder:
  • The double-acting design allows for bidirectional movement, with compressed air used to extend and retract the piston. This provides precise control over both the extension and retraction cycles, ensuring reliable performance for various automation and handling tasks.
• Durable Construction:
  • The cylinder is designed for long-term durability, featuring high-quality seals, materials, and coatings. It is built to perform well in harsh environments, providing extended service life even under heavy use.
• Energy Efficiency:
  • The cylinder's design ensures that air consumption is kept to a minimum, optimizing energy usage. This is especially important for businesses looking to reduce operational costs while maintaining consistent performance.

3. Specifications:

• Bore Diameter (B): 100 mm
• Stroke Length (S): 125 mm (custom stroke lengths available)
• Operating Pressure: Typically ranges from 2 to 10 bar, depending on the application and operational requirements.
• Operating Temperature Range: Designed for use in temperatures from -10°C to 70°C, allowing for a wide range of environmental conditions.
• Air Consumption: Optimized to reduce air consumption without sacrificing performance, making it an energy-efficient choice.

4. Performance and Applications:

• Speed Control:
  • The cylinder is compatible with adjustable speed control valves, allowing users to fine-tune the speed of the extension and retraction strokes. This is particularly useful for applications that require specific speed adjustments for safety or precision.
• Applications:
  • Material Handling: The SU100 X 125-S is ideal for moving materials in assembly lines, sorting systems, and packaging operations. The cylinder's compact stroke length makes it perfect for applications where space is limited, but moderate linear movement is required.
  • Automation Systems: In automation, it is used to move parts, tools, or components within machines, robotic arms, or other automated systems. The cylinder provides reliable, precise motion in both directions for efficient operations.
  • Clamping and Positioning: It is commonly used for clamping and positioning in manufacturing processes, especially when high force and precise control are needed over short to medium distances.
  • Machine Tooling: In machine tools, the SU100 X 125-S performs well in applications such as loading and unloading components, positioning parts, and activating mechanisms where consistent, repeatable movement is required.
• Energy Efficiency:
  • The SU100 X 125-S is designed with energy savings in mind. Its optimized air consumption reduces operational costs and minimizes the impact on the environment, making it a sustainable option for long-term use.

5. Advantages:

• Moderate Stroke Length: The 125 mm stroke length strikes the right balance between compactness and performance, making it suitable for applications that require moderate range linear motion.
• High Force Output: The 100 mm bore diameter ensures that the cylinder generates sufficient force for medium-duty tasks, such as pushing, pulling, and lifting components.
• Versatility: The SU100 X 125-S can be used across a wide range of industrial applications, including material handling, automation, clamping, and positioning.
• Energy Efficient: Its optimized design reduces air consumption, lowering operational costs and contributing to sustainable practices in industrial settings.
• Low Maintenance: Built for durability, the cylinder features high-quality seals and materials that ensure a long operational life with minimal maintenance needs.

6. Maintenance:

• Lubrication: To ensure smooth and efficient operation, regular lubrication of moving parts like the piston and rod is recommended.
• Seal Inspections: Regular inspection of seals for wear or damage is crucial to maintain performance. Replacing seals as needed will help prevent air leaks and maintain cylinder efficiency.
• Routine Visual Checks: Periodic visual checks for corrosion, wear, or damage should be performed to ensure that the cylinder is in good working condition and avoid unexpected failures.

Conclusion:

The Techno SU100 X 125-S Pneumatic Cylinder Series is a versatile and reliable solution for industrial applications requiring moderate stroke lengths and high force output. With a 100 mm bore diameter and a 125 mm stroke length, it is perfect for material handling, automation, clamping, and positioning tasks. The cylinder's durable construction, energy-efficient design, and low-maintenance requirements make it a cost-effective choice for businesses seeking reliable, long-lasting performance. The SU100 X 125-S provides the precision, force, and efficiency needed for a variety of applications across industries.
