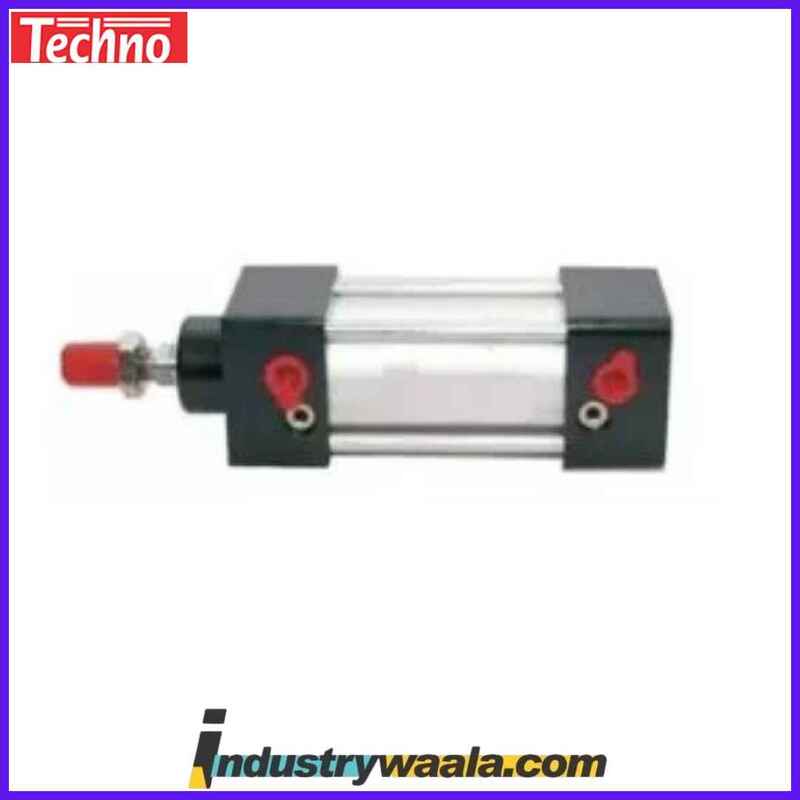

Techno SU40 X 300-S Pneumatic Cylinder Series

The Techno SU40 X 300-S Pneumatic Cylinder Series is a high-performance, double-acting pneumatic actuator designed for demanding applications requiring extended stroke lengths and precise control. With a 40 mm bore and a 300 mm stroke, it offers enhanced power and versatility while maintaining compactness for space-constrained installations.

Key Features:

• Bore Size: 40 mm, providing a balanced output force suitable for various medium-to-heavy-duty applications.
• Stroke Length: 300 mm, designed for tasks requiring larger travel distances while maintaining high precision.
• Cylinder Type: Double-acting, offering smooth and controlled extension and retraction, making it ideal for complex motion control.
• Pressure Rating: Operates effectively at pressures ranging from 0.5 to 10 bar, adaptable to various system requirements.
• Temperature Range: -10°C to 80°C, ensuring reliable operation in a wide range of industrial environments.
• Mounting Options: Available with versatile mounting configurations (foot, flange, or pivot), providing flexibility in installation based on space and design needs.

Materials and Construction:

• Cylinder Body: Constructed from anodized aluminum, offering a lightweight yet durable structure with excellent resistance to corrosion.
• Piston Rod: Chrome-plated steel, ensuring a smooth and durable surface for reduced wear and friction during operation.
• Seals: High-performance seals are designed to minimize leakage and friction, ensuring efficient operation and a longer lifespan.

Performance Benefits:

• Increased Stroke: The 300 mm stroke length allows for more significant travel distance compared to smaller cylinders, making it ideal for applications where large motions are necessary without sacrificing precision.
• Compact and Efficient: Despite its larger stroke, the cylinder's 40 mm bore size ensures that it can generate sufficient force without taking up excessive space or requiring high air consumption.
• Precision and Reliability: The cylinder is designed for precision control, making it suitable for tasks that demand accuracy over long travel distances.
• Energy Efficiency: Its low-friction components, such as the chrome-plated piston rod, reduce energy consumption and lower the operational costs of air-driven systems.

Applications:

• Material Handling and Conveying: Suitable for applications where components need to be moved or positioned over a larger area, such as conveyor systems, loading/unloading, or part placement.
• Pressing and Clamping: Used in applications that require long travel distance and controlled force for tasks like pressing or clamping components in assembly lines.
• Automation Systems: Ideal for automated machinery where precise linear movement with a substantial stroke is necessary for system functions.
• Robotic Systems: The longer stroke and compact size make this cylinder a great fit for robotic arms or other automation systems requiring precise, extended movement.

Conclusion:

The Techno SU40 X 300-S Pneumatic Cylinder Series stands out as a highly capable, double-acting pneumatic actuator ideal for applications requiring longer strokes and greater versatility. With its combination of durability, precision, and energy efficiency, it is well-suited for a wide range of industrial tasks, including material handling, automation, pressing, and robotics. Its adaptable mounting options, robust construction, and smooth performance make it a reliable choice for many modern industrial and manufacturing processes.
