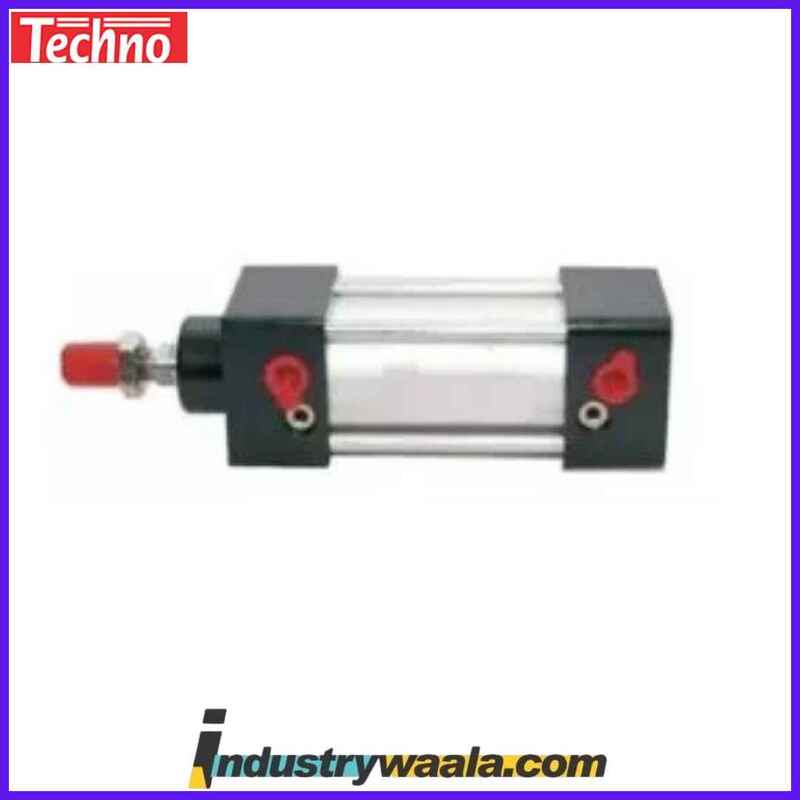

Techno SU80 X 800-S Pneumatic Cylinder Series

The Techno SU80 X 800-S is a double-acting pneumatic cylinder with an 80 mm bore and 800 mm stroke. This cylinder is designed for high-force applications requiring extended travel and precise linear movement. The double-acting design ensures reliable operation by using compressed air for both extension and retraction, offering superior control over the cylinder's motion. The large bore size and long stroke make the SU80 X 800-S well-suited for tasks in industrial automation, material handling, heavy machinery, and large-scale manufacturing processes where strength and reliability are paramount.

The SU80 X 800-S is engineered for long-lasting durability, thanks to its robust construction. The anodized aluminum body offers resistance to corrosion, which is essential for its operation in environments with high humidity or exposure to chemicals. The chrome-plated steel piston rod minimizes wear and friction, contributing to the smooth operation of the cylinder and extending its operational life.

Key Features:

1. Bore Size (80 mm):
   • The 80 mm bore provides substantial force, making this cylinder suitable for applications requiring high thrust and large payloads. It delivers the strength needed for heavy-duty lifting, pushing, or clamping tasks.
2. Stroke Length (800 mm):
   • The 800 mm stroke offers extended travel for applications that require a longer range of motion. This feature is especially useful in systems where long travel distances are needed for material handling, machinery operation, or assembly tasks.
3. Double-Acting Design (S):
   • The double-acting design uses compressed air for both extension and retraction, providing more control over the cylinder’s motion and allowing for more versatile applications. This configuration is ideal for dynamic systems that require controlled, reliable actuation in both directions.
4. Durable Construction:
   • The anodized aluminum body is lightweight yet strong, offering excellent corrosion resistance and increasing the cylinder’s lifespan, even in harsh or corrosive environments.
   • The chrome-plated steel piston rod ensures smooth and reliable motion while reducing wear, resulting in minimal friction and improved efficiency.
5. High-Performance Sealing System:
   • The SU80 X 800-S is equipped with high-performance seals that reduce friction and prevent air leakage, improving operational efficiency and reducing maintenance needs. These seals also contribute to a longer service life by minimizing wear on internal components.

Technical Specifications:

• Pressure Rating: The SU80 X 800-S operates effectively within a pressure range of 0.5 to 10 bar (7.25 to 145 psi), ensuring it can handle the demands of most industrial pneumatic systems.
• Cylinder Body Material: The body of the cylinder is made from anodized aluminum, which provides corrosion resistance and lightweight strength, making it suitable for various industrial applications.
• Piston Rod Material: The chrome-plated steel piston rod is built for strength, durability, and smooth operation, minimizing wear and extending the service life of the cylinder.
• Operating Temperature Range: The SU80 X 800-S operates within a temperature range of -10°C to 80°C (14°F to 176°F), allowing it to function effectively in most industrial settings.
• Mounting Options: The SU80 X 800-S offers multiple mounting configurations, allowing it to be adapted to a wide range of installation requirements:
  • Foot Mounting: Ideal for surface installations.
  • Flange Mounting: Provides more rigid support for applications requiring stability.
  • Trunnion Mounting: Suitable for applications that involve rotational movement or require a more secure mounting setup.

Applications:

The Techno SU80 X 800-S Pneumatic Cylinder is ideal for high-force, long-travel applications in industries such as:

• Industrial Automation: For applications requiring heavy-duty lifting, pushing, or clamping in automated production lines.
• Material Handling: Ideal for transporting, sorting, or positioning heavy items over long distances in warehouses or distribution systems.
• Heavy Machinery: Perfect for use in machinery requiring robust pneumatic actuation, such as presses, crushers, or large-scale assembly equipment.
• Packaging: Often used for tasks such as material handling, sorting, or moving packages in large-scale packaging systems.
• Construction and Manufacturing: Ideal for applications that involve heavy lifting or pushing of components in construction or manufacturing processes.

Advantages:

• High Force and Long Stroke: The 80 mm bore and 800 mm stroke make this cylinder ideal for heavy-duty tasks requiring high force and extended movement.
• Double-Acting Efficiency: The double-acting design provides greater control and efficiency in both extension and retraction, making it versatile for a range of applications.
• Durable and Long-Lasting: The anodized aluminum body and chrome-plated steel piston rod ensure the cylinder can withstand prolonged use, even in tough environments.
• High-Performance Seals: The advanced sealing system reduces friction and leakage, improving energy efficiency and reducing maintenance.
• Flexible Mounting Options: Multiple mounting configurations allow the cylinder to be easily integrated into various systems and applications.

Conclusion:

The Techno SU80 X 800-S Pneumatic Cylinder is a robust, high-performance pneumatic actuator designed for heavy-duty industrial applications. With its 80 mm bore, 800 mm stroke, and double-acting design, it provides the strength and precision required for tasks such as material handling, industrial automation, and heavy machinery operation. Built with durable materials and equipped with high-performance seals, this cylinder ensures long-lasting performance and minimal maintenance. Its versatile mounting options make it adaptable to a variety of installation needs, making it a reliable choice for demanding industrial environments.
