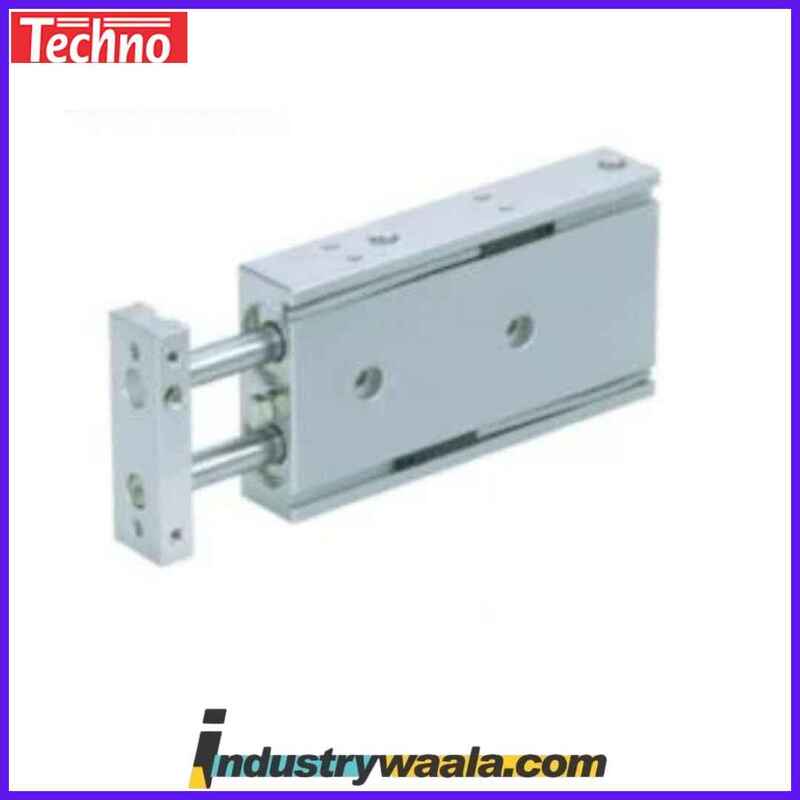

Techno TN25 X 200-S Pneumatic Cylinder Series

The Techno TN25 X 200-S Pneumatic Cylinder Series is a high-performance actuator designed for precision linear motion with a 25mm bore and 200mm stroke. Built for medium to heavy-duty applications, this cylinder offers reliable, smooth, and efficient operation across a wide range of tasks that require extended stroke lengths. Compliant with the ISO 15552 standard, it guarantees compatibility and easy integration with various pneumatic components and systems.

Constructed with an anodized aluminum body, the TN25 X 200-S is both lightweight and corrosion-resistant, making it suitable for environments exposed to moisture, dust, or chemicals. The hardened steel piston rod ensures durability, offering high resistance to wear and tear, even in high-cycle applications. The cylinder is equipped with low-friction seals, which reduce internal resistance, enhancing operational efficiency and extending the service life of the actuator.

To ensure smooth operation, the TN25 X 200-S comes with adjustable cushioning at both ends of the stroke. This feature helps reduce shock at the end of the cylinder’s stroke, minimizing stress on the components and the system. It also improves comfort by providing smoother, quieter operation. The adjustable cushioning allows for fine-tuning the deceleration speed, which is beneficial in preventing damage to the cylinder and surrounding machinery.

With its energy-efficient design, the TN25 X 200-S is an excellent choice for applications that require consistent high-performance operation with low air consumption. It is ideal for use in automated systems, robotics, material handling, packaging, and positioning tasks where both precision and reliability are essential.

Key Features:

1. ISO 15552 Compliance:
   • Fully compatible with ISO 15552 standards, ensuring easy integration with other pneumatic components in automation systems.
2. Cylinder Bore and Stroke:
   • Features a 25mm bore and 200mm stroke, offering extended motion for a variety of applications that require longer stroke lengths in a compact form factor.
3. Durable Construction:
   • The cylinder is made from anodized aluminum, which provides corrosion resistance and lightweight performance, while the hardened steel piston rod offers exceptional wear resistance and durability.
4. Low-Friction Seals:
   • The low-friction seals inside the cylinder ensure smooth, efficient movement, reducing energy loss, improving performance, and minimizing wear and tear.
5. Adjustable Cushioning:
   • Adjustable cushioning at both ends of the stroke ensures smooth deceleration and minimizes shock, protecting the cylinder and surrounding machinery from damage and wear.
6. Energy Efficient:
   • Designed to reduce air consumption, the TN25 X 200-S operates efficiently, contributing to lower operational costs, particularly in systems with high-cycle or continuous operations.
7. Flexible Mounting Options:
   • Multiple mounting configurations such as flange, side, and base mounting allow for flexibility in installation and ensure compatibility with different application setups.
8. Corrosion Resistance:
   • The anodized aluminum body ensures the cylinder remains resistant to corrosion, making it suitable for demanding environments where exposure to moisture, chemicals, or dust is common.
9. Long Stroke in a Compact Design:
   • Despite its 200mm stroke, the TN25 X 200-S maintains a compact 25mm bore, providing a space-saving solution for applications that require longer stroke lengths but limited installation space.
10. Low Maintenance:
    • The low-maintenance design reduces the frequency of repairs or servicing, contributing to greater uptime and a more cost-effective solution.

Applications:

• Industrial Automation: The TN25 X 200-S is well-suited for use in industrial automation systems, particularly those requiring long stroke lengths for positioning, sorting, or conveying tasks.
• Material Handling: This cylinder is ideal for material handling applications, such as product movement, sorting, or assembly lines requiring consistent, precise linear motion.
• Packaging Machinery: The TN25 X 200-S is widely used in packaging machinery for tasks like product transfer, sorting, or sealing, where extended strokes are necessary for larger operations.
• Robotics: In robotic systems, the TN25 X 200-S is used for tool actuation, gripping, or positioning, offering precise and controlled movements in robotic arms or automated machinery.
• Machine Tools: This cylinder is ideal for machine tools that require accurate linear motion for tool positioning, adjustment, or workpiece movement.

Benefits:

• Long Stroke with Compact Design: The TN25 X 200-S combines a long stroke with a compact 25mm bore, making it perfect for applications requiring extended motion in a space-constrained environment.
• Energy Efficient: With its low air consumption design, this cylinder helps reduce overall operational costs, particularly in high-cycle applications.
• Durable and Reliable: The anodized aluminum body and hardened steel piston rod ensure the cylinder withstands harsh conditions, offering consistent performance over time.
• Smooth, Quiet Operation: The low-friction seals and adjustable cushioning ensure that the cylinder operates smoothly and quietly, enhancing user experience and reducing noise in industrial environments.
• Minimal Maintenance: The cylinder's low-friction seals and robust construction ensure that it operates for extended periods with minimal need for maintenance, leading to greater operational uptime and cost savings.

Conclusion:

The Techno TN25 X 200-S Pneumatic Cylinder Series offers a robust, high-performance solution for applications requiring precision linear motion with a 25mm bore and 200mm stroke. Its ISO 15552 compliance, adjustable cushioning, and low-friction seals make it ideal for use in industrial automation, robotics, material handling, and packaging machinery. With energy-efficient design, corrosion resistance, and durability, the TN25 X 200-S is a reliable and long-lasting solution for demanding environments that require high-performance pneumatic cylinders.
