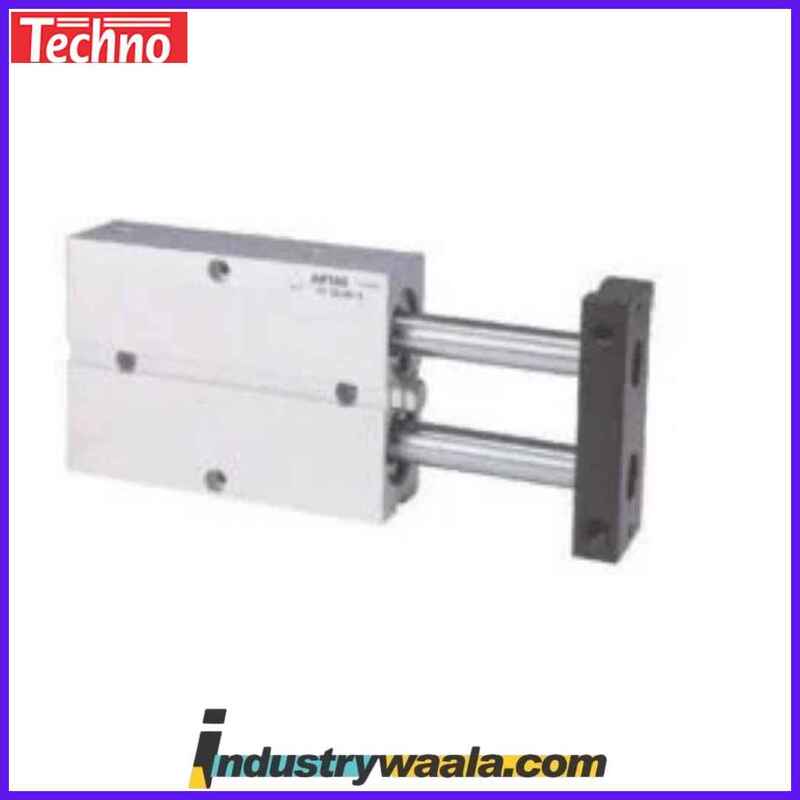

Techno TND25 X 10-S Pneumatic Cylinder Series

The Techno TND25 X 10-S pneumatic cylinder is engineered for applications requiring precise linear motion with a compact design and short stroke. With a 25 mm bore and 10 mm stroke, this cylinder is perfect for use in confined spaces or systems where only small adjustments or movements are needed. Its single-acting configuration means the cylinder uses compressed air to extend the piston and relies on an internal spring for retraction, simplifying the overall system and reducing both complexity and maintenance requirements.

Constructed with anodized aluminum and chrome-plated steel components, the TND25 X 10-S ensures long-term durability, smooth operation, and resistance to wear and corrosion. These features make it ideal for a variety of industrial and automation applications, where space-saving, low-force motion is needed.

Key Features:

1. Bore Size (25 mm):
   • The 25 mm bore provides a balance between a compact form factor and sufficient force output. This cylinder size is perfect for applications where moderate force is required without compromising on space.
2. Stroke Length (10 mm):
   • The 10 mm stroke is ideal for applications where only a small, controlled movement is necessary. Its short stroke length makes it suitable for tasks like positioning, clamping, or light-duty pushing in confined spaces.
3. Single-Acting (S):
   • The single-acting design simplifies operation by utilizing compressed air for the piston’s extension and an internal spring for retraction. This reduces the need for complex external control systems, making it a cost-effective solution with fewer parts to maintain.
4. Durable Construction:
   • The TND25 X 10-S features an anodized aluminum body, providing a corrosion-resistant, lightweight, and robust structure that is ideal for long-term use in various industrial environments. The chrome-plated steel piston rod enhances the smooth operation and wear resistance, allowing the cylinder to maintain consistent performance even in high-frequency applications.
5. Sealing System:
   • The high-quality sealing system ensures minimal air leakage, reducing energy consumption and improving efficiency. This also minimizes wear and friction, extending the lifespan of the cylinder and maintaining consistent performance.

Technical Specifications:

• Pressure Rating: The TND25 X 10-S operates within a pressure range of 0.5 to 10 bar (7.25 to 145 psi), which makes it compatible with a wide variety of standard pneumatic systems used across multiple industries.
• Cylinder Body Material: Constructed from anodized aluminum, the cylinder body provides strength, durability, and corrosion resistance, while maintaining a lightweight design. The anodized finish further enhances its resistance to wear and environmental conditions.
• Piston Rod Material: The chrome-plated steel piston rod offers smooth motion, high wear resistance, and corrosion resistance, which ensures longevity even with frequent use and exposure to environmental factors.
• Operating Temperature Range: The TND25 X 10-S is suitable for use within an operating temperature range of -10°C to 80°C (14°F to 176°F), making it adaptable to various working environments.
• Mounting Options: The TND25 X 10-S can be mounted in several ways, offering flexibility for different system designs:
  • Foot Mounting: Provides a simple and stable attachment to flat surfaces.
  • Flange Mounting: Offers rigid and secure mounting for more demanding applications.
  • Trunnion Mounting: Ideal for situations requiring pivoting or rotation of the cylinder.

Applications:

The TND25 X 10-S Pneumatic Cylinder is perfect for use in a range of applications where small, controlled movements are needed. Some typical uses include:

• Automation Systems: Ideal for small adjustments in automation equipment, robotics, and conveyors, where space and stroke length are limited but precise control is necessary.
• Material Handling: Suitable for light-duty tasks, such as pushing, positioning, or clamping components in applications like assembly lines, packaging machines, or small conveyors.
• Laboratory Equipment: Commonly used in lab equipment for controlled movement of parts and precise testing setups, where compactness and small travel distances are required.
• Packaging Systems: Used for positioning, sorting, and minor adjustments within packaging and labeling systems, especially when space is limited.
• Textile and Electronics Manufacturing: Often used for light-duty handling, sorting, and positioning of delicate components in manufacturing environments.

Advantages:

• Compact and Space-Saving: The TND25 X 10-S is ideal for applications where space is constrained but small, precise linear movements are required.
• Low Maintenance and Cost-Effective: The single-acting configuration reduces the complexity of the system, lowering maintenance costs and enhancing operational efficiency.
• Durability and Long Service Life: The anodized aluminum body and chrome-plated steel piston rod ensure the cylinder is highly resistant to wear, corrosion, and environmental factors, providing a long service life.
• Flexible Mounting Options: With multiple mounting choices (foot, flange, and trunnion), the cylinder can be easily integrated into various applications and setups.
• Efficient Performance: The high-quality sealing system reduces air leakage and friction, enhancing efficiency and contributing to lower operating costs.

Conclusion:

The Techno TND25 X 10-S Pneumatic Cylinder is a highly reliable, cost-effective solution for applications that require precise, small-scale motion. With its 25 mm bore, 10 mm stroke, and single-acting design, this cylinder is ideal for use in automation, material handling, packaging, and laboratory equipment. Its compact size, durable construction, and efficient performance make it an excellent choice for a wide range of industrial tasks, especially in confined spaces where small movements are needed.

For further information or to inquire about custom configurations, it is recommended to consult the product datasheet or contact the manufacturer directly.
