| Specification | Details |
|---|---|
| Model | TM-50 |
| Machine Type | 3D Wheel Alignment Machine |
| Technology | Advanced 3D Alignment System |
| Camera Type | Imported Precision Cameras |
| Display | 32" LCD Display |
| Wheel Clamps | Four-Point Wheel Clamps |
| Measurement Functions | Toe, Camber, Caster, SAI, Thrust Angle |
| Communication | Digital Camera-Based System |
| Accuracy | ±0.02° |
| Vehicle Coverage | Passenger Cars & SUVs |

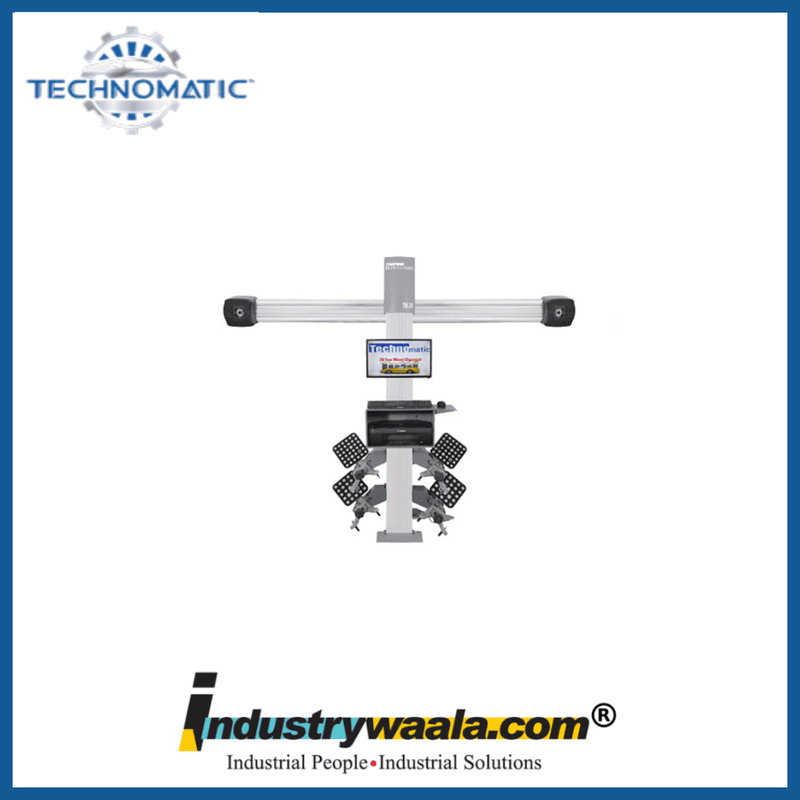

Technomatic TM-50 3D Wheel Alignment Machine – Precision Meets Performance
The Technomatic TM-50 3D Wheel Alignment Machine is engineered to provide highly accurate wheel alignment measurements while improving workshop productivity and service quality. Designed for professional automotive workshops and tyre service centers, this advanced alignment system utilizes cutting-edge 3D imaging technology to perform comprehensive alignment diagnostics quickly and efficiently.
Featuring imported high-resolution precision cameras and advanced image-processing technology, the TM-50 captures alignment data with exceptional accuracy. The system measures critical wheel geometry parameters such as toe, camber, caster, steering axis inclination (SAI), thrust angle, wheelbase, track width, and axle offset, helping technicians diagnose and correct alignment issues effectively.
The machine incorporates Technomatic's advanced 3D-Tech Compensation system, which compensates for wheel and rim deformation through a simple forward and backward vehicle movement. This significantly reduces setup time while improving measurement accuracy and workshop efficiency. High-precision target disks and four-point wheel clamps ensure stable and reliable data collection throughout the alignment process.
The TM-50 also features intelligent LED guidance technology that provides real-time feedback during alignment procedures. This helps technicians perform measurements accurately while minimizing errors. The advanced software interface offers visual instructions, alignment correction guidance, and comprehensive reporting capabilities, making the machine suitable for both experienced technicians and growing workshops.
Built for demanding workshop environments, the TM-50 is equipped with a robust camera beam structure, premium optical lenses, and a high-speed computer processing system capable of delivering continuous real-time measurements. The machine supports a large vehicle database covering thousands of vehicle models, ensuring compatibility with most passenger cars and SUVs.
Key Features
✔ Advanced 3D wheel alignment technology for precise measurements.
✔ Imported high-resolution precision cameras for superior accuracy.
✔ Four-point wheel clamps ensure secure wheel positioning.
✔ High-precision target disks for reliable alignment data.
✔ Toe, camber, caster, SAI, and thrust angle measurement capabilities.
✔ Intelligent LED guidance system for real-time operator assistance.
✔ 3D-Tech Compensation corrects errors caused by rim deformation.
✔ Adjustable camera beam angle for flexible installation.
✔ High-speed image processing for faster alignment procedures.
✔ Suitable for automotive workshops, tyre centers, and service stations.
