| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | 030-202-R/L |
| Product Type | Hydraulic Swing Clamp |
| Series | 030 Series |
| Version | Bottom Flange |
| Operation | Double Acting |
| Oil Pressure | 35–350 kg/cm² |
| Swivel Angle | 90° ± 2° |

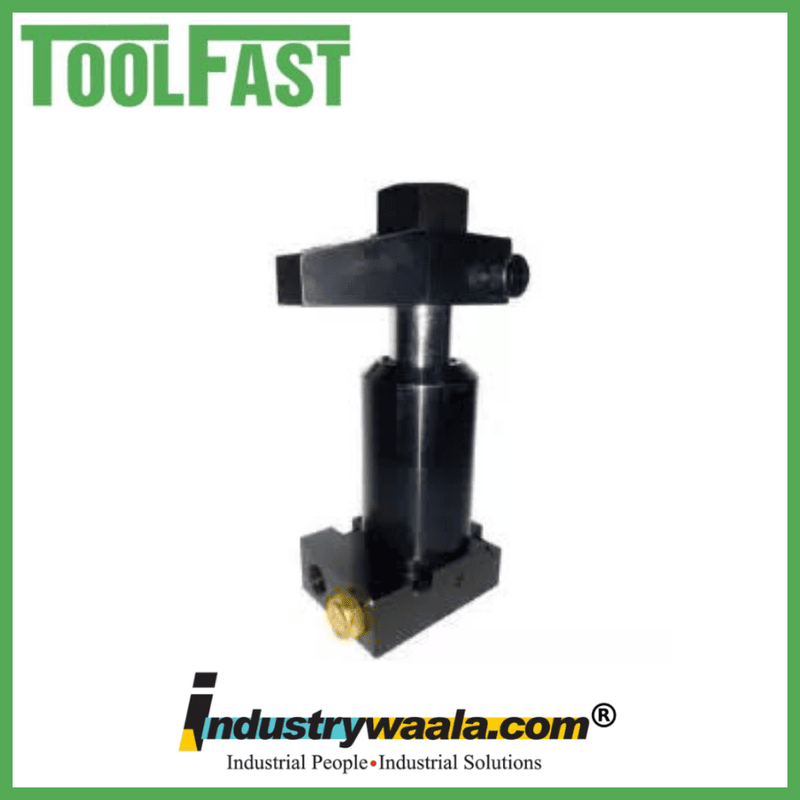

The Tool Fast 030-202-R/L Hydraulic Bottom Flange Swing Clamp is a high-oil-pressure, double-acting hydraulic swing clamp designed for reliable and repeatable workholding in industrial fixtures. The 030 series operates with an inlet oil pressure of 35–350 kg/cm² and provides a standard 90° ± 2° swivel angle. The 030-202-R/L model has a 44 mm bore diameter, 14 mm swing stroke, 14 mm clamping stroke, and a specified clamping force of 1,100 kg at 210 kg/cm².
Key Features
1. High Oil Pressure Hydraulic Operation
The 030-202-R/L is designed for high-pressure hydraulic workholding systems with an inlet oil pressure range of 35–350 kg/cm², making it suitable for demanding industrial clamping applications.
2. Bottom Flange Mounting
Its bottom flange configuration provides a practical mounting arrangement for hydraulic fixtures and machine-tool workholding systems. The cylinder body also allows manifold or threaded port connection.
3. Double-Acting Swing Mechanism
The clamp uses a double-acting hydraulic mechanism, allowing controlled clamping and unclamping operation. The arm swings through a standard 90° ± 2° angle to provide clearance for loading and unloading workpieces.
4. High Clamping Force
The 030-202-R/L provides approximately 1,100 kg of clamping force at 210 kg/cm², making it suitable for secure workholding during machining and other industrial operations.
5. Robust Industrial Construction
The 030 series uses a medium-carbon-steel body and is designed for demanding fixture applications. The R/L configuration provides right-hand or left-hand swing direction options.
