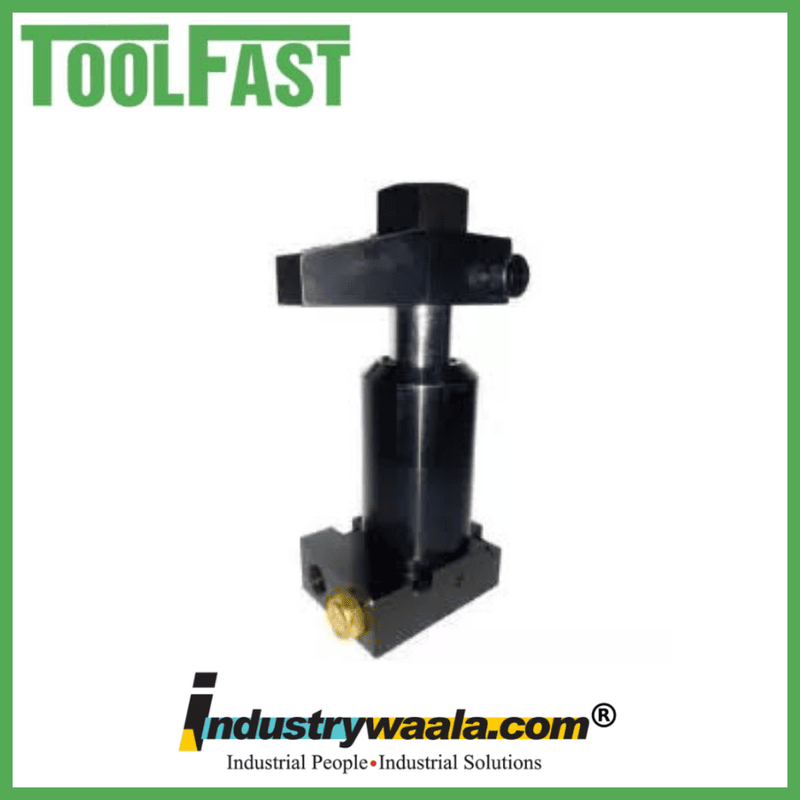

The Tool Fast 030-352-R/L High Oil Pressure Hydraulic Bottom Flange Swing Clamp is a heavy-duty double-acting hydraulic swing clamp designed for secure and repeatable workholding in CNC machining fixtures and industrial production systems. It belongs to the 030 Series, which operates at 35–350 kg/cm² inlet oil pressure and features a 90° ± 2° swivel angle. The 030-352-R/L provides a 55 mm bore diameter, 14 mm swing stroke, 16 mm clamping stroke, and 2,100 kg clamping force at 210 kg/cm².
Key Features
1. High Oil Pressure Hydraulic Operation
The 030-352-R/L is designed for high-pressure hydraulic workholding applications with an inlet oil pressure range of 35–350 kg/cm², making it suitable for demanding industrial fixtures.
2. Bottom Flange Mounting
The bottom flange configuration provides a practical mounting arrangement for hydraulic fixtures. The cylinder design also supports flexible manifold or threaded port connections within the same cylinder body.
3. Double-Acting Swing Mechanism
The clamp uses a double-acting hydraulic mechanism for controlled clamping and unclamping. Its standard swivel angle is 90° ± 2°, allowing the arm to move away from the workpiece during loading and unloading.
4. High Clamping Force
The 030-352-R/L delivers a specified 2,100 kg clamping force at 210 kg/cm², making it suitable for strong and secure workholding during machining operations.
5. Right- or Left-Hand Swing
The R/L configuration allows selection of right-hand or left-hand swing direction according to fixture layout and workpiece accessibility.
