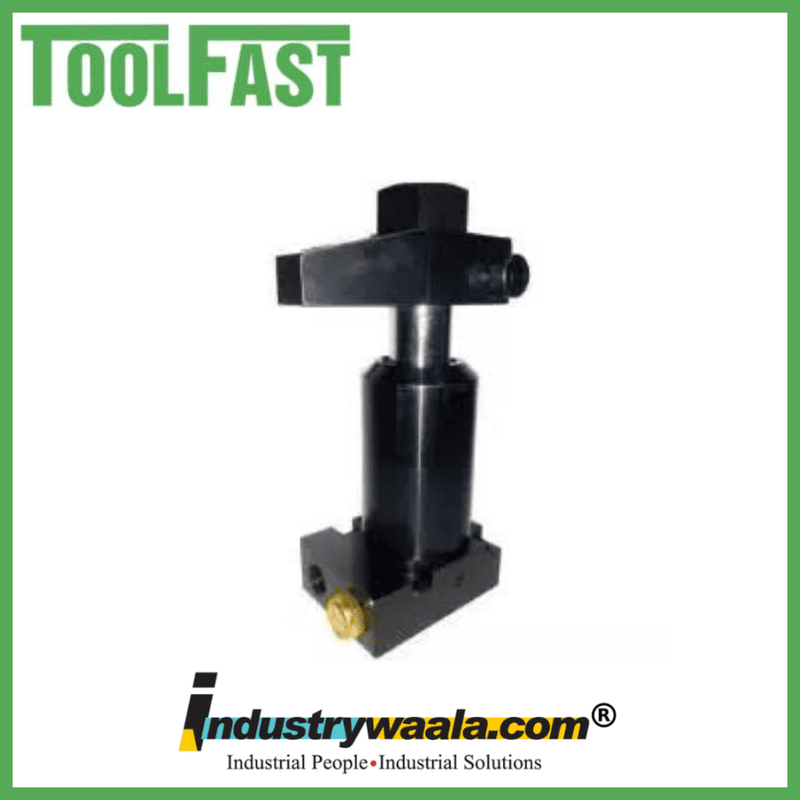

The Tool Fast 030-92-R/L High Oil Pressure Hydraulic Bottom Flange Swing Clamp is a double-acting hydraulic swing clamp designed for secure and repeatable workholding in CNC fixtures, machining centers, and industrial production systems. It belongs to the 030 Series, which operates with an inlet oil pressure range of 35–350 kg/cm². The 030-92-R/L features a 32 mm bore, 10 mm swing stroke, 12 mm clamping stroke, and a specified 550 kg clamping force at 210 kg/cm².
Key Features
1. High Oil Pressure Hydraulic Operation
The 030-92-R/L is designed for high-pressure hydraulic workholding, with an inlet oil pressure range of 35–350 kg/cm², making it suitable for demanding industrial clamping applications.
2. Bottom Flange Mounting
Its bottom flange configuration provides a practical mounting arrangement for hydraulic fixtures and machine-tool workholding systems. The cylinder design allows manifold or threaded port connection within the same body.
3. Double-Acting Swing Mechanism
The clamp uses a double-acting hydraulic mechanism for controlled clamping and unclamping. Its standard swivel angle is 90° ± 2°, allowing the arm to swing away from the workpiece during loading and return for clamping.
4. 550 kg Clamping Force
The 030-92-R/L provides a specified 550 kg clamping force at 210 kg/cm², offering secure workholding for machining and production operations.
5. Right- and Left-Hand Swing Options
The R/L configuration allows the clamp to be selected for right-hand or left-hand swing direction, providing flexibility when designing fixtures around different workpiece layouts
