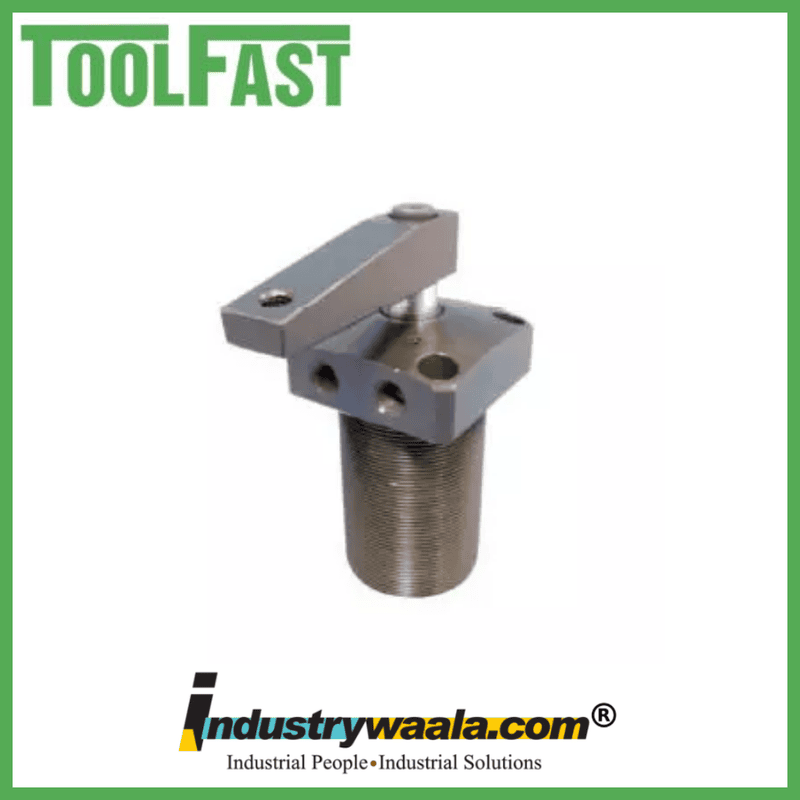

The Tool Fast 050-202-R/L High Oil Pressure Hydraulic Upper Flange Swing Clamp is a double-acting hydraulic swing clamp designed for secure, repeatable workholding in CNC fixtures, machining centers, and industrial production systems. The 050 Series operates with 35–350 kg/cm² inlet oil pressure and features a 90° ± 2° swivel angle. The 050-202-R/L model has a 44 mm bore diameter, 14 mm swing stroke, 14 mm clamping stroke, and a specified 1,100 kg clamping force at 210 kg/cm².
Key Features
1. High Oil Pressure Operation
The 050-202-R/L is designed for high-pressure hydraulic workholding, with an inlet oil pressure range of 35–350 kg/cm², making it suitable for demanding industrial clamping applications.
2. Upper Flange Mounting
The upper flange version provides a convenient mounting arrangement for hydraulic fixtures. The flexible cylinder design allows manifold or threaded port connection in one cylinder body.
3. Double-Acting Swing Mechanism
The clamp uses a double-acting hydraulic mechanism for controlled clamping and unclamping. Its standard swivel angle is 90° ± 2°, providing clearance for workpiece loading and unloading.
4. High Clamping Force
The 050-202-R/L provides a specified 1,100 kg clamping force at 210 kg/cm², offering strong and consistent workholding during machining operations.
5. Right- and Left-Hand Swing
The R/L configuration provides right-hand or left-hand swing options, allowing the clamp to be selected according to fixture layout and workpiece accessibility
