| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | 050-352-R/L |
| Product Type | Hydraulic Swing Clamp |
| Series | 050 Series |
| Mounting Type | Upper Flange |
| Operation | Double Acting |
| Inlet Oil Pressure | 35–350 kg/cm² |
| Swivel Angle | 90° ± 2° |
Non-returnable
₹115,479.00 ₹138,574.80
Product Details
Ratings & Reviews
Product Details
Product Details

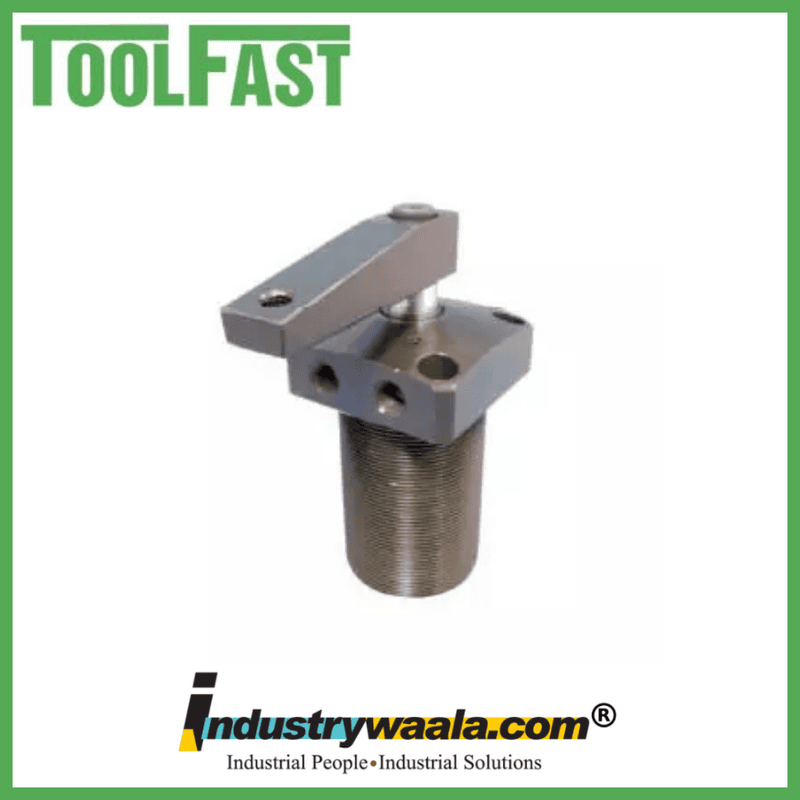

The Tool Fast 050-352-R/L High Oil Pressure Hydraulic Upper Flange Swing Clamp is a heavy-duty, double-acting hydraulic workholding clamp designed for secure and repeatable clamping in CNC machining fixtures, machining centers, and automated industrial applications. It operates at high hydraulic pressure and features a 90° swing mechanism for convenient workpiece loading and unloading.
Key Features:
- High Oil Pressure Operation
Designed for hydraulic systems operating at 35–350 kg/cm² inlet oil pressure, making it suitable for demanding industrial workholding applications. - Upper Flange Mounting
The upper flange configuration provides convenient installation on hydraulic fixtures and machine-tool workholding systems. - Double-Acting Hydraulic Mechanism
The double-acting design provides controlled hydraulic clamping and unclamping. The arm swings approximately 90° ± 2°, providing clearance during workpiece loading and unloading. - High Clamping Force
The 050-352-R/L is designed for high-force workholding, making it suitable for securely holding components during machining and production operations. - Right- and Left-Hand Swing Options
The R/L configuration allows selection of the required swing direction according to fixture design, workpiece position, and machine accessibility.
