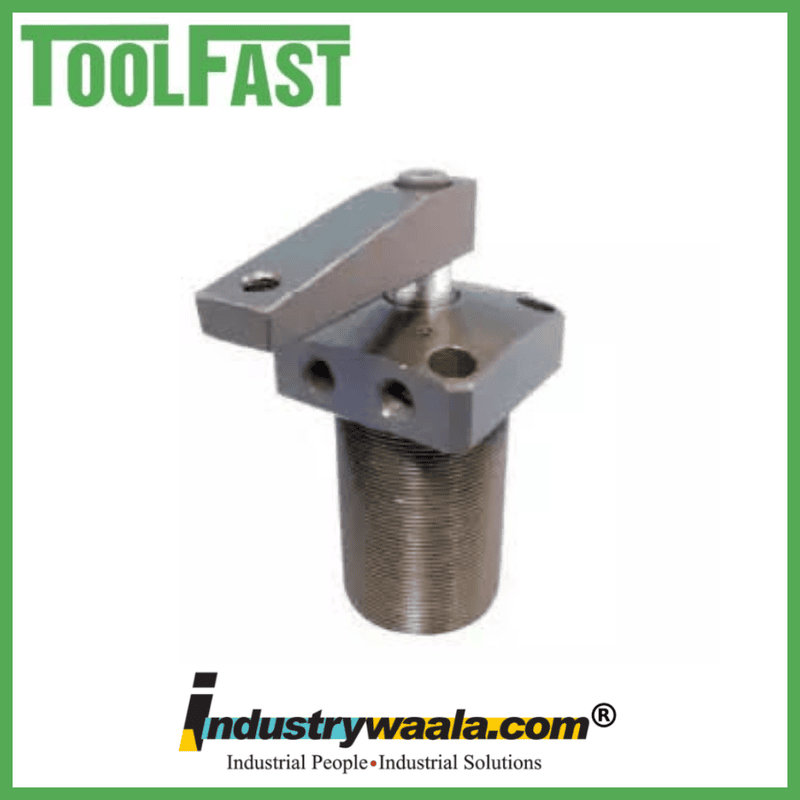

The Tool Fast 050-92-R/L High Oil Pressure Hydraulic Upper Flange Swing Clamp is a compact and robust double-acting hydraulic swing clamp designed for secure and repeatable workholding in CNC fixtures, machining centers, and automated production systems. It is part of the Tool Fast 050 Series and is designed for high-pressure hydraulic applications. Its swing-arm mechanism provides clearance for convenient workpiece loading and unloading while delivering reliable clamping during machining operations.
Key Features
1. High Oil Pressure Hydraulic Operation
The 050-92-R/L is designed for high-pressure hydraulic workholding applications, supporting an inlet oil pressure range of 35–350 kg/cm². This makes it suitable for demanding industrial clamping systems.
2. Upper Flange Mounting
The upper flange configuration allows the clamp to be integrated conveniently into hydraulic fixtures and custom machine-tool workholding arrangements.
3. Double-Acting Swing Mechanism
The clamp uses a double-acting hydraulic mechanism for controlled clamping and unclamping. Its swing action helps move the clamping arm away from the workpiece during loading and return it to the clamping position during operation.
4. Compact Design with Strong Clamping
The 050-92-R/L is designed for applications where fixture space is limited while reliable hydraulic clamping force is required. Its compact form makes it suitable for a wide range of machining fixtures.
5. Right- and Left-Hand Swing Options
The R/L configuration provides right-hand and left-hand swing options, allowing the clamp to be selected according to the fixture layout and workpiece accessibility.
