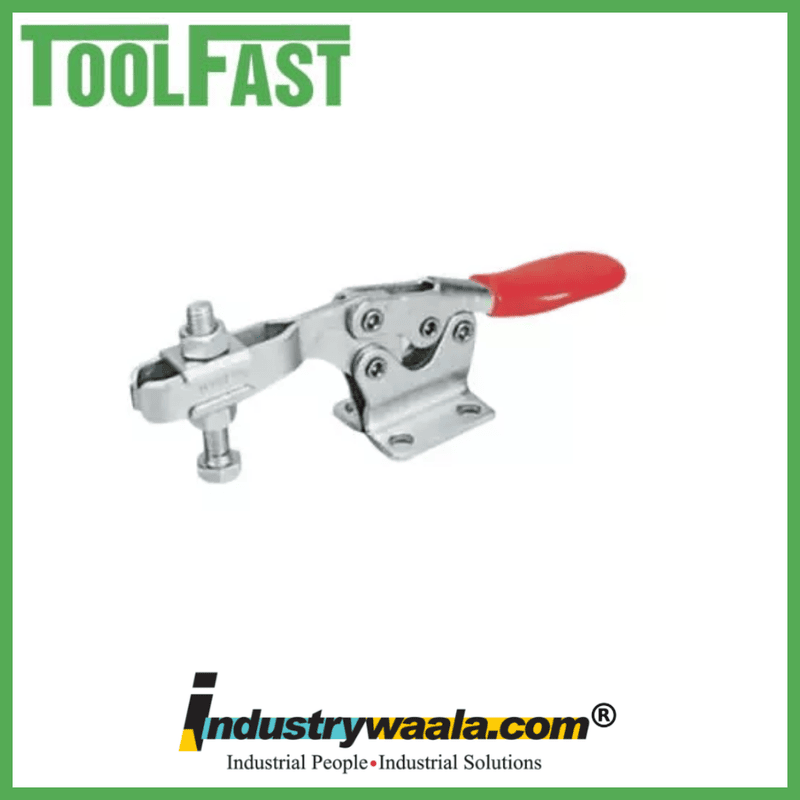

The Tool Fast HDTC-27-BR Hold Down Toggle Clamp – Horizontal Handle is a mechanical workholding component designed to securely hold workpieces against a fixture or work surface during machining, drilling, milling, welding, fabrication, and assembly operations. Its horizontal-handle configuration provides convenient manual operation, while the toggle mechanism allows quick clamping and release. The clamp is suitable for CNC fixtures, custom jigs, production workholding systems, and general industrial applications where stable and repeatable workpiece positioning is required.
Key Features
1. Hold-Down Clamping Action
The HDTC-27-BR provides a downward clamping action that helps keep workpieces firmly positioned against the fixture surface during machining and fabrication operations.
2. Horizontal Handle Design
The horizontal handle provides convenient operator access and allows straightforward manual operation in fixture arrangements where a horizontal handle position is preferred.
3. Quick Clamping & Release
The toggle mechanism allows workpieces to be secured and released quickly, making the clamp suitable for repetitive production, machining, assembly, and fabrication operations.
4. Stable Workpiece Positioning
The clamp helps minimize unwanted workpiece movement during milling, drilling, welding, machining, and assembly, supporting consistent and repeatable workholding.
5. Versatile Fixture Integration
The HDTC-27-BR can be incorporated into CNC machining fixtures, milling fixtures, drilling jigs, welding setups, fabrication fixtures, and custom industrial workholding systems.
