| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | HDTC-36 |
| Product Type | Hold Down Toggle Clamp |
| Handle Type | Horizontal Handle |
| Clamping Action | Hold Down |
| Operation | Manual / Mechanical |
| Application | Workholding & Fixturing |
| Suitable For | Machining, Welding & Assembly |
| Application Area | Industrial & Manufacturing |

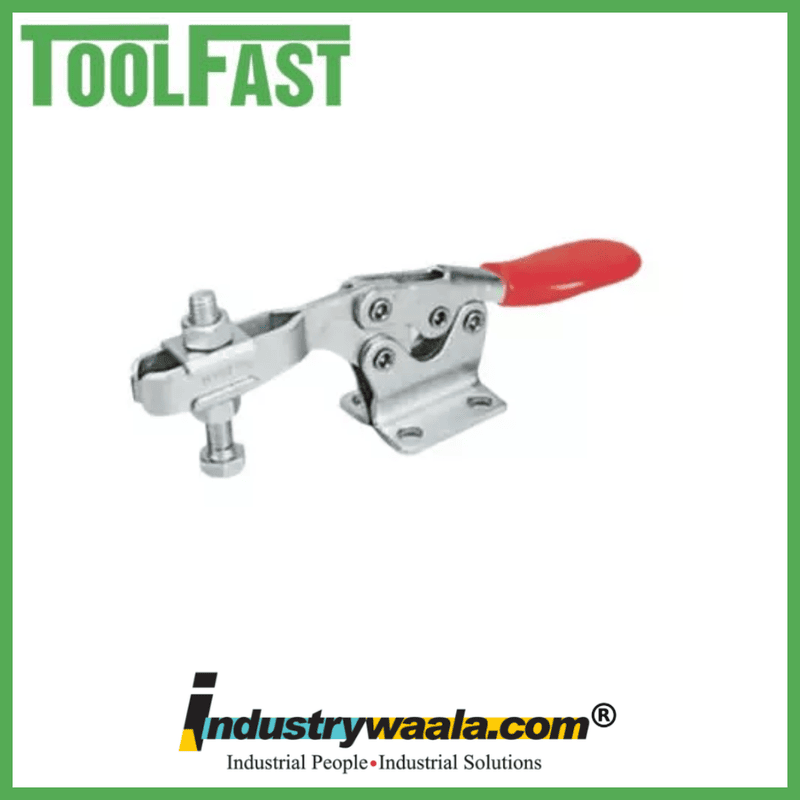

The Tool Fast HDTC-36 Hold Down Toggle Clamp – Horizontal Handle is a reliable mechanical workholding component designed to securely hold workpieces against a fixture or work surface during machining, milling, drilling, welding, fabrication, and assembly operations. Its horizontal-handle configuration provides convenient manual operation, while the toggle mechanism allows quick clamping and release. The HDTC-36 is suitable for CNC fixtures, custom jigs, production workholding systems, and industrial applications where stable and repeatable workpiece positioning is required.
Key Features
1. Hold-Down Clamping Action
The HDTC-36 provides downward clamping pressure to help keep workpieces firmly positioned against the fixture surface during machining, fabrication, welding, and assembly operations.
2. Horizontal Handle Design
The horizontal handle provides convenient operator access and allows straightforward manual operation in fixtures where a horizontal handle arrangement is preferred.
3. Quick Clamping & Release
The toggle mechanism enables operators to quickly secure and release workpieces, making the clamp suitable for repetitive production, machining, assembly, and fabrication applications.
4. Stable Workpiece Positioning
The clamp helps minimize unwanted workpiece movement during milling, drilling, welding, machining, and assembly, supporting consistent and repeatable workholding.
5. Versatile Fixture Integration
The HDTC-36 can be incorporated into CNC machining fixtures, milling fixtures, drilling jigs, welding setups, fabrication fixtures, assembly fixtures, and custom industrial workholding systems.
