| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | HDTC-50-BS |
| Product Type | Hold Down Toggle Clamp |
| Handle Type | Horizontal Handle |
| Base Type | Straight Base |
| Clamping Action | Hold Down |
| Operation | Manual / Mechanical |
| Application | Workholding & Fixturing |
| Suitable For | Machining, Welding & Assembly |
| Application Area | Industrial & Manufacturing |

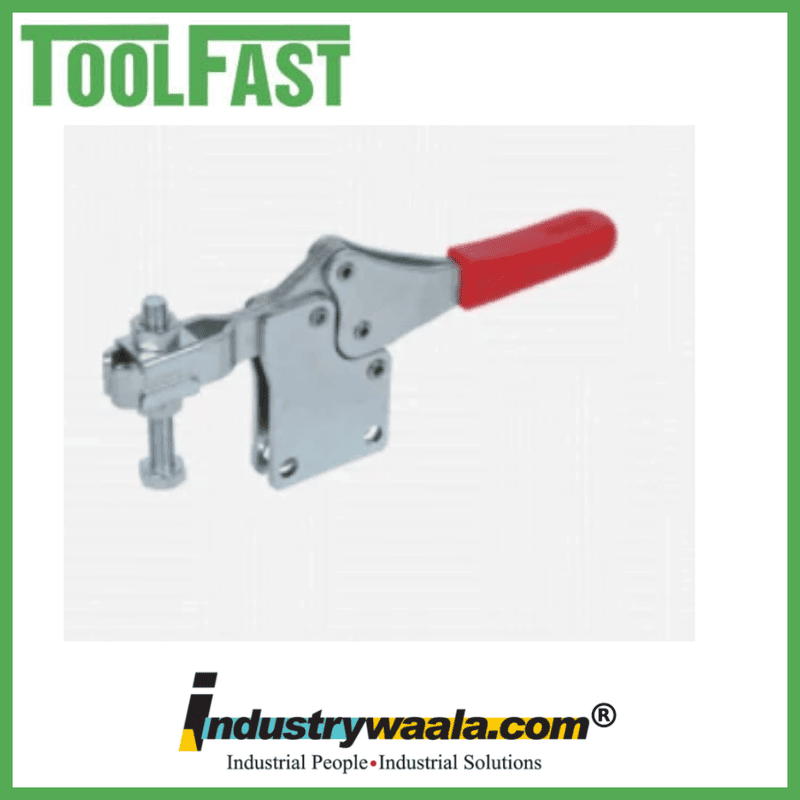

The Tool Fast HDTC-50-BS Hold Down Toggle Clamp – Horizontal Handle – Base Straight is a robust mechanical workholding solution designed to securely hold workpieces against a fixture or work surface during machining, milling, drilling, welding, fabrication, and assembly operations. Its horizontal-handle configuration provides convenient manual operation, while the straight base design allows practical mounting on compatible fixtures and machine tables. The toggle mechanism enables quick clamping and release, making it suitable for CNC fixtures, production jigs, custom workholding systems, and industrial manufacturing applications.
Key Features
1. Hold-Down Clamping Action
The HDTC-50-BS applies downward clamping pressure to help keep workpieces firmly positioned against the fixture surface during machining, fabrication, welding, and assembly operations.
2. Horizontal Handle Design
The horizontal handle provides convenient operator access and allows straightforward manual operation in fixture arrangements where a horizontal operating position is preferred.
3. Straight Base Configuration
The straight base design provides a practical mounting arrangement for integrating the clamp into compatible fixtures, machine tables, jigs, and custom workholding systems.
4. Quick Clamping & Release
The toggle mechanism allows operators to quickly secure and release workpieces, making the clamp suitable for repetitive machining, production, assembly, and fabrication operations.
5. Stable & Versatile Workholding
The clamp helps minimize unwanted workpiece movement and can be integrated into CNC machining fixtures, milling fixtures, drilling jigs, welding setups, fabrication fixtures, and custom industrial workholding systems.
