| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | PATC-12-FB-HD |
| Product Type | Push/Pull Action Toggle Clamp |
| Clamping Action | Push / Pull |
| Base Type | Front Base |
| Duty Type | Heavy Duty |
| Operation | Manual / Mechanical |
| Mechanism | Toggle |
| Application | Heavy-Duty Workholding & Fixturing |

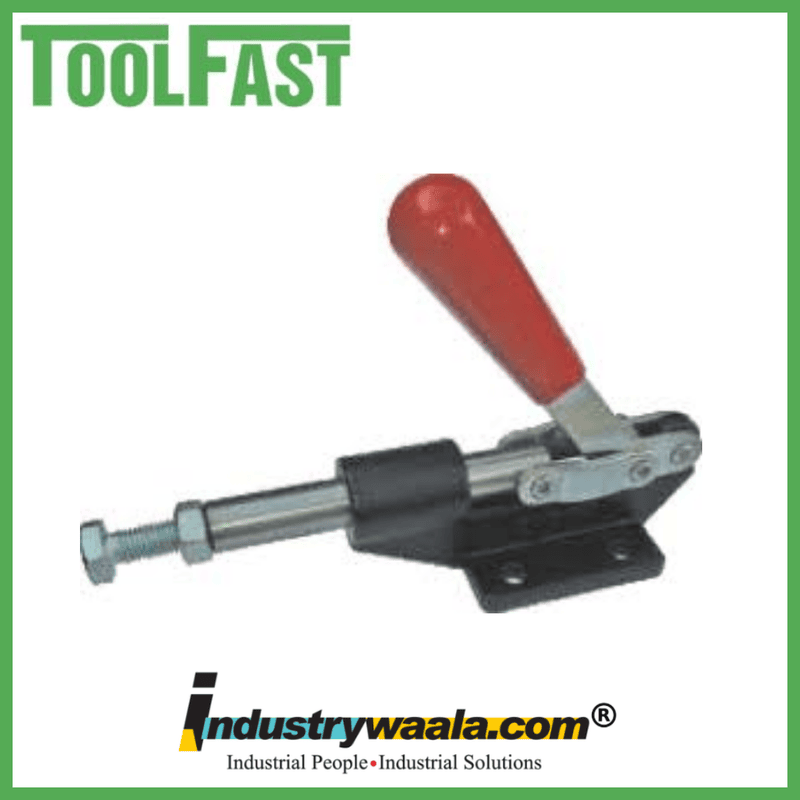

The Tool Fast PATC-12-FB-HD Push/Pull Action Toggle Clamp – Front Base is a robust mechanical workholding component designed to securely hold, position, and stabilize workpieces during machining, milling, drilling, welding, fabrication, assembly, and production operations. Its push/pull action provides flexible clamping functionality, while the front-base configuration offers a practical mounting arrangement for compatible fixtures and custom jigs. The heavy-duty design makes it suitable for demanding workholding applications where stronger mechanical clamping and stable workpiece positioning are required. The toggle mechanism supports quick engagement and release, making the PATC-12-FB-HD suitable for repetitive industrial operations and custom fixture systems.
Key Features
1. Heavy-Duty Push/Pull Clamping
The PATC-12-FB-HD is designed for demanding workholding applications, providing push and pull clamping functionality for securing workpieces against suitable fixture or locating surfaces.
2. Front Base Configuration
The front-base design provides a practical mounting arrangement for installation into compatible fixtures and custom jigs, supporting flexible fixture layouts.
3. Quick Toggle Operation
The toggle mechanism enables efficient engagement and release, helping simplify repeated workpiece loading and unloading during production and assembly operations.
4. Stable Workpiece Positioning
The clamp helps maintain secure workpiece positioning during machining, milling, drilling, welding, fabrication, and assembly, supporting consistent fixture performance.
5. Versatile Industrial Fixture Integration
The PATC-12-FB-HD can be incorporated into CNC fixtures, machining fixtures, welding jigs, fabrication setups, assembly fixtures, and heavy-duty industrial workholding systems.
