| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | PATC-6 |
| Product Type | Push/Pull Action Toggle Clamp |
| Clamping Action | Push / Pull |
| Model Type | Miniature Model |
| Operation | Manual / Mechanical |
| Mechanism | Toggle |
| Application | Compact Workholding & Fixturing |
| Suitable For | Small Components, Machining & Assembly |

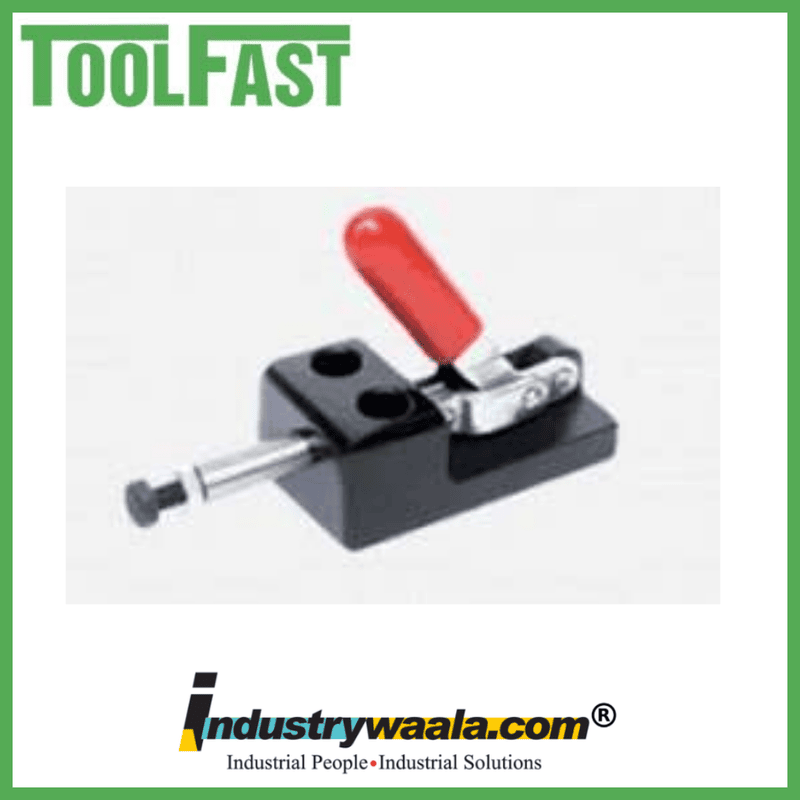

The Tool Fast PATC-6 Push/Pull Action Toggle Clamp – Miniature Model is a compact mechanical workholding component designed to securely hold, position, and stabilize smaller workpieces, components, and fixture parts during machining, drilling, milling, fabrication, assembly, and light-duty production operations. Its push/pull action provides flexible clamping functionality, while the miniature design makes it suitable for applications where compact dimensions and efficient use of fixture space are important. The toggle mechanism enables quick engagement and release, supporting convenient operation during repetitive workholding cycles. The PATC-6 is suitable for compact CNC fixtures, small jigs, assembly fixtures, fabrication setups, model-making applications, and custom industrial workholding systems.
Key Features
1. Compact Miniature Design
The PATC-6 features a miniature configuration designed for applications where limited fixture space requires a compact mechanical clamping solution.
2. Push/Pull Action Clamping
The clamp provides both push and pull clamping functionality, allowing flexible positioning and securing of smaller workpieces against suitable fixture or locating surfaces.
3. Quick Toggle Operation
The toggle mechanism supports quick engagement and release, making the clamp convenient for repeated workpiece loading, positioning, and unloading operations.
4. Stable Workpiece Positioning
The clamp helps hold smaller components securely during machining, drilling, milling, fabrication, and assembly, supporting consistent workpiece positioning.
5. Versatile Fixture Integration
The PATC-6 can be incorporated into compact CNC fixtures, small jigs, assembly fixtures, fabrication setups, prototype fixtures, and custom workholding systems.
