| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | PSB-25-R/L |
| Product Type | Pneumatic Swing Clamp |
| Operation | Pneumatic |
| Clamping Type | Swing Clamp |
| Version | Block Version |
| Action | Swing-Away Clamping |
| Application | Pneumatic Workholding & Fixturing |
| Suitable For | CNC Machining, Automation & Assembly |

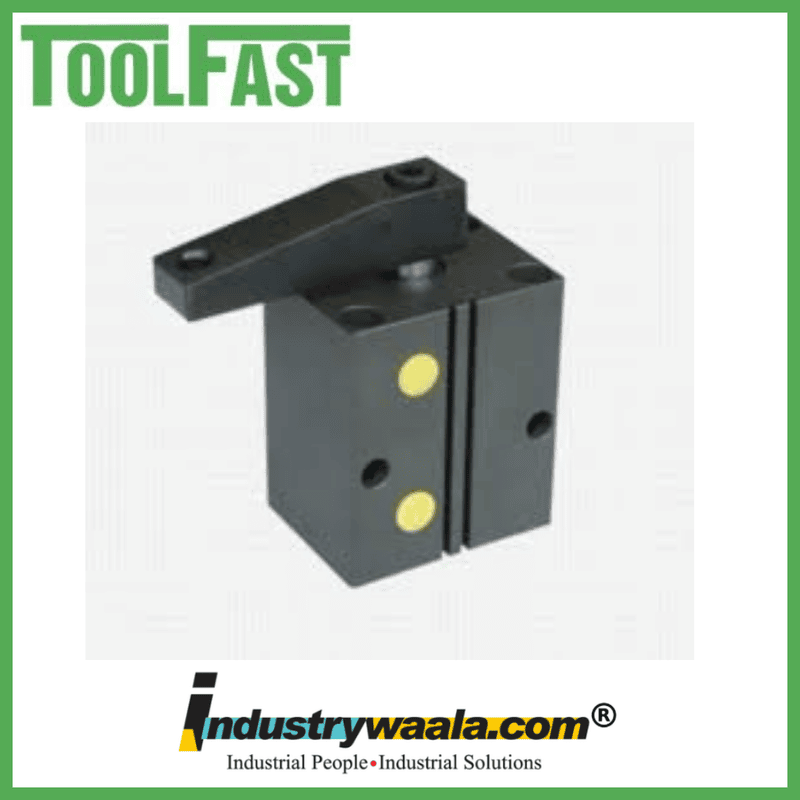

The Tool Fast PSB-25-R/L Pneumatic Swing Clamp – Block Version is an industrial pneumatic workholding component designed to provide secure, controlled, and repeatable clamping of workpieces in machining, manufacturing, fabrication, and automated fixture applications. Its pneumatic swing-clamp mechanism allows the clamping arm to move clear of the workpiece during loading and unloading, helping provide convenient access and efficient fixture operation. The block version offers a practical mounting configuration for suitable fixture designs and custom workholding systems. The PSB-25-R/L is suitable for CNC machining fixtures, milling fixtures, drilling fixtures, automated production systems, welding fixtures, and custom industrial jigs where reliable and repeatable workholding is required.
Key Features
1. Pneumatic Swing Clamping
The PSB-25-R/L uses pneumatic actuation to provide controlled clamping and release, making it suitable for applications requiring repeated and consistent workholding cycles.
2. Swing-Away Clamping Action
The swing mechanism allows the clamping arm to move away from the workpiece during loading and unloading, helping improve accessibility and fixture operating convenience.
3. Block Version Design
The block version provides a practical mounting configuration for integration into compatible fixtures, machine setups, and custom pneumatic workholding systems.
4. Fast & Repeatable Workholding
Pneumatic operation supports consistent clamping cycles, making the PSB-25-R/L suitable for repetitive machining, assembly, fabrication, and automated production applications.
5. Versatile Fixture Integration
The clamp can be incorporated into CNC fixtures, milling fixtures, drilling setups, welding fixtures, fabrication jigs, automated workholding systems, and custom industrial fixtures.
