| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | PSF-50-R/L |
| Product Type | Pneumatic Swing Clamp |
| Operation | Pneumatic |
| Clamping Type | Swing Clamp |
| Version | Flange Version |
| Action | Swing-Away Clamping |
| Application | Pneumatic Workholding & Fixturing |
| Suitable For | CNC Machining, Automation & Assembly |

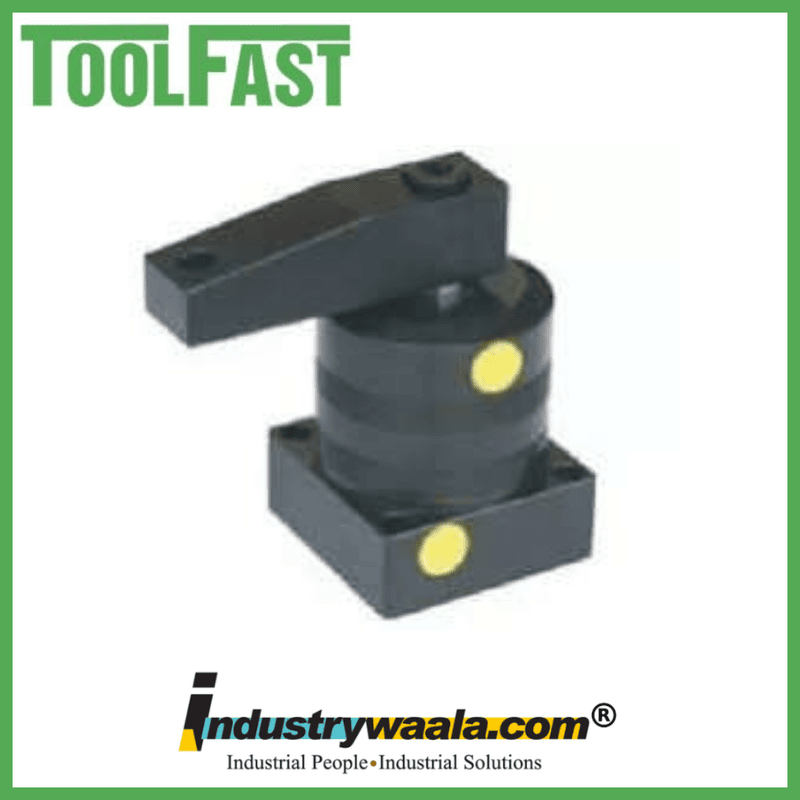

The Tool Fast PSF-50-R/L Pneumatic Flange Version Swing Clamp is an industrial pneumatic workholding component designed to provide secure, controlled, and repeatable clamping of workpieces in machining, manufacturing, fabrication, and automated fixture applications. Its pneumatic swing-clamp mechanism allows the clamping arm to move clear of the workpiece during loading and unloading, helping provide convenient access and efficient fixture operation. The flange version offers a practical mounting configuration for compatible fixture plates, machine setups, and custom workholding systems. The PSF-50-R/L is suitable for CNC machining fixtures, milling fixtures, drilling fixtures, automated production systems, welding fixtures, and custom industrial jigs where reliable and repeatable workholding is required.
Key Features
1. Pneumatic Swing Clamping
The PSF-50-R/L uses pneumatic actuation to provide controlled clamping and release, making it suitable for applications requiring repeated and consistent workholding cycles.
2. Swing-Away Clamping Action
The swing mechanism allows the clamping arm to move away from the workpiece during loading and unloading, helping improve accessibility and simplify fixture operation.
3. Flange Version Mounting
The flange version provides a practical mounting arrangement for integrating the swing clamp into compatible fixture plates, machine setups, and custom pneumatic workholding systems.
4. Fast & Repeatable Workholding
Pneumatic operation supports consistent clamping cycles, making the PSF-50-R/L suitable for repetitive machining, assembly, fabrication, and automated production applications.
5. Versatile Fixture Integration
The PSF-50-R/L can be incorporated into CNC fixtures, milling fixtures, drilling setups, welding fixtures, fabrication jigs, automated workholding systems, and custom industrial fixtures.
