| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | PST-40-R/L |
| Product Type | Pneumatic Swing Clamp |
| Operation | Pneumatic |
| Clamping Type | Swing Clamp |
| Version | Screw-In Version |
| Mounting Type | Threaded / Screw-In |
| Action | Swing-Away Clamping |
| Application | Pneumatic Workholding & Fixturing |

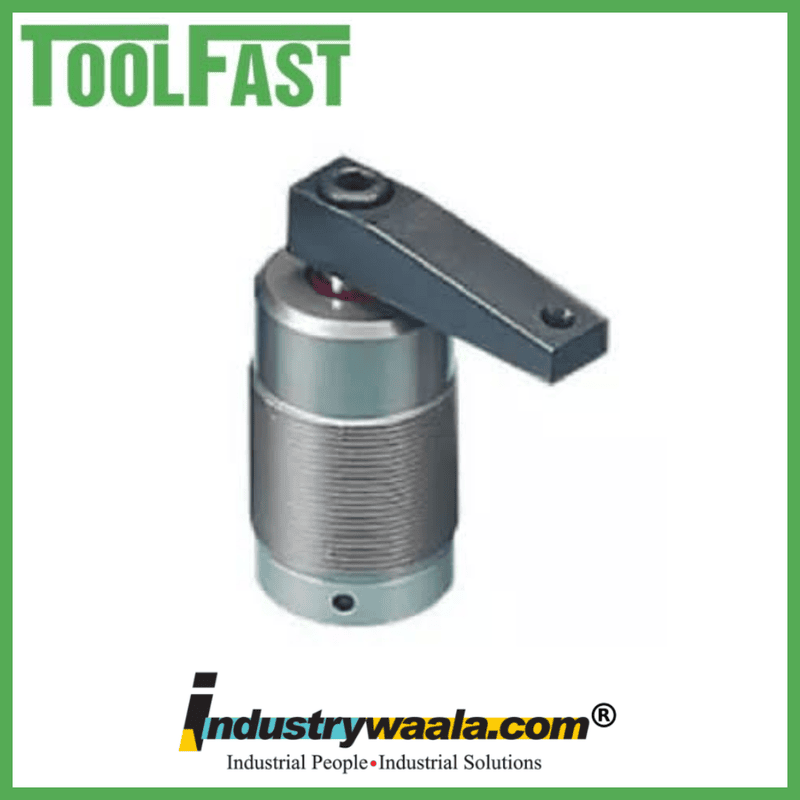

The Tool Fast PST-40-R/L Pneumatic Screw-In Version Swing Clamp is an industrial pneumatic workholding component designed to provide secure, controlled, and repeatable clamping of workpieces in machining, manufacturing, fabrication, and automated fixture applications. Its pneumatic swing-clamp mechanism allows the clamping arm to move clear of the workpiece during loading and unloading, helping provide convenient access and efficient fixture operation. The screw-in version offers a practical threaded mounting arrangement for compatible fixture bodies and custom workholding systems. The PST-40-R/L is suitable for CNC machining fixtures, milling fixtures, drilling fixtures, automated production systems, welding fixtures, and custom industrial jigs where reliable and repeatable workholding is required.
Key Features
1. Pneumatic Swing Clamping
The PST-40-R/L uses pneumatic actuation to provide controlled clamping and release, making it suitable for applications requiring repeated and consistent workholding cycles.
2. Swing-Away Clamping Action
The swing mechanism allows the clamping arm to move away from the workpiece during loading and unloading, helping improve accessibility and simplify fixture operation.
3. Screw-In Mounting Design
The screw-in version provides a threaded mounting configuration for installation into compatible fixture bodies, machine setups, and custom pneumatic workholding systems.
4. Fast & Repeatable Workholding
Pneumatic operation supports consistent clamping cycles, making the PST-40-R/L suitable for repetitive machining, assembly, fabrication, and automated production applications.
5. Versatile Fixture Integration
The PST-40-R/L can be incorporated into CNC fixtures, milling fixtures, drilling setups, welding fixtures, fabrication jigs, automated workholding systems, and custom industrial fixtures.
