| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | RATC-70 |
| Product Type | Hold Down Toggle Clamp |
| Handle Type | Vertical Handle |
| Base Type | Right Angle Base |
| Clamping Action | Hold Down |
| Operation | Manual / Mechanical |
| Application | Workholding & Fixturing |
| Suitable For | Machining, Welding & Fabrication |

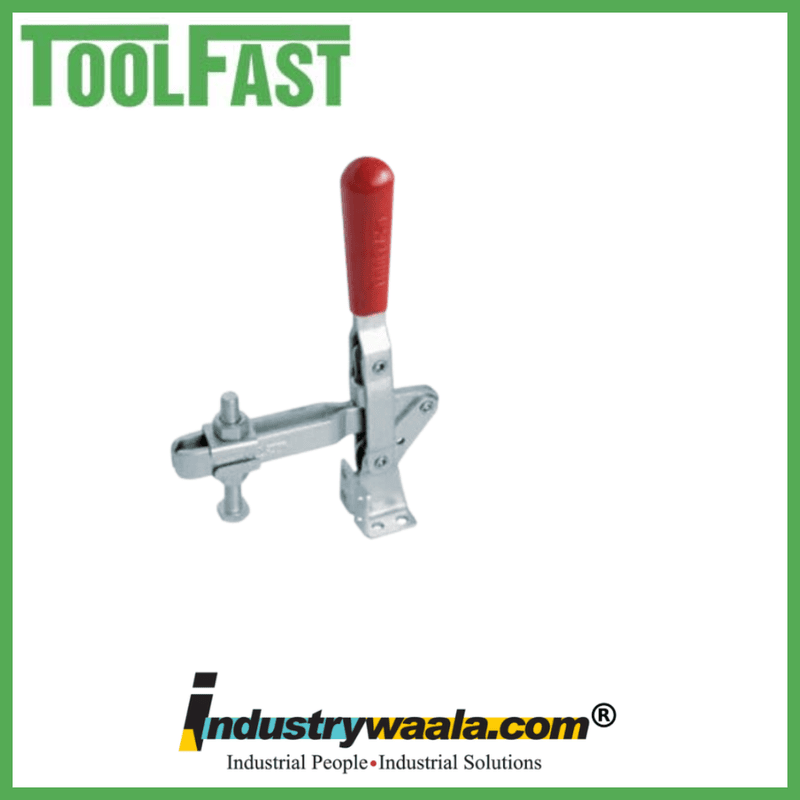

The Tool Fast RATC-70 Hold Down Toggle Clamp – Vertical Handle – Right Angle Base is a robust mechanical workholding component designed to securely hold workpieces against a fixture or supporting surface during machining, drilling, milling, welding, fabrication, and assembly operations. Its vertical-handle configuration provides convenient manual operation, while the hold-down toggle mechanism enables quick clamping and release. The right-angle base offers a practical mounting arrangement for fixture setups where perpendicular positioning is required. The RATC-70 is suitable for CNC fixtures, custom jigs, production workholding systems, welding fixtures, fabrication setups, and general industrial applications where stable and repeatable workpiece positioning is important.
Key Features
1. Hold-Down Clamping Action
The RATC-70 applies downward clamping pressure to help keep workpieces firmly positioned against the fixture surface during machining, fabrication, welding, and assembly operations.
2. Vertical Handle Design
The vertical handle provides convenient manual operation and allows the operator to quickly engage or release the toggle mechanism during repetitive workholding operations.
3. Right-Angle Base
The right-angle base provides a practical mounting configuration for fixtures requiring the clamp to be installed perpendicular to the mounting surface, supporting flexible fixture design.
4. Quick Clamping & Release
The toggle mechanism allows rapid engagement and release, making the RATC-70 suitable for repetitive production, machining, assembly, and fabrication applications.
5. Stable & Repeatable Workholding
The clamp helps minimize unwanted workpiece movement during milling, drilling, machining, welding, and assembly, supporting consistent positioning and repeatable fixture operation.
