| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | VHDT-80-BR |
| Product Type | Hold Down Toggle Clamp |
| Handle Type | Vertical Handle |
| Base Type | Flanged Base |
| Clamping Action | Hold Down |
| Operation | Manual / Mechanical |
| Mechanism | Toggle |
| Application | Workholding & Fixturing |

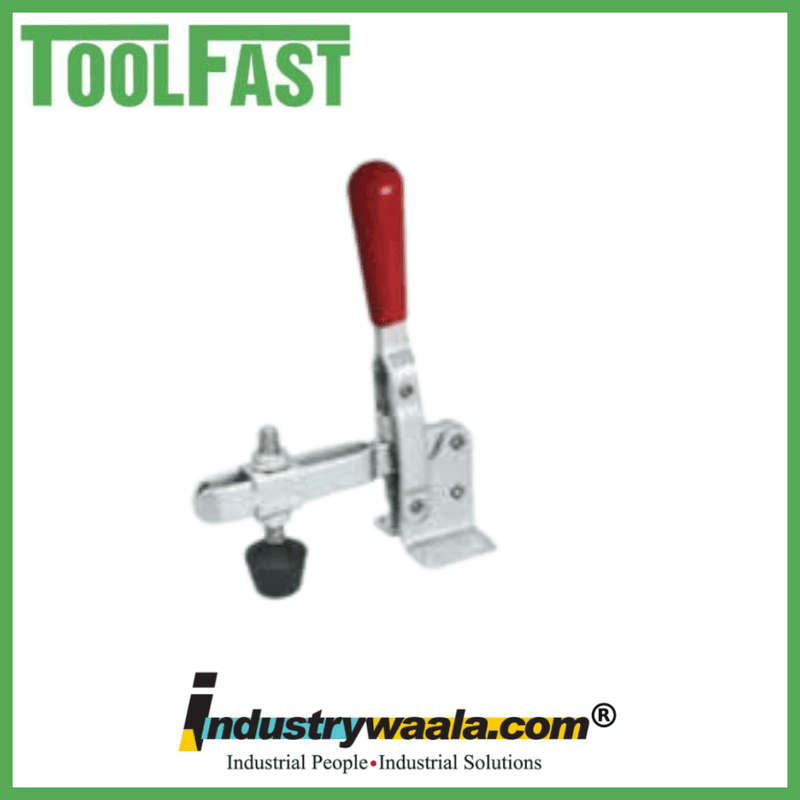

The Tool Fast VHDT-80-BR Hold Down Toggle Clamp – Vertical Handle – Flanged Base is a robust mechanical workholding component designed to securely hold and position suitable workpieces against a fixture or supporting surface during CNC machining, milling, drilling, welding, fabrication, assembly, and production operations. Its vertical-handle configuration provides convenient manual operation, while the hold-down toggle mechanism helps maintain stable workpiece positioning. The flanged base provides a practical mounting arrangement for compatible fixtures, jigs, machine surfaces, and custom workholding systems. The VHDT-80-BR is suitable for applications requiring quick clamping, reliable mechanical holding, and repeatable workpiece positioning.
Key Features
1. Hold-Down Clamping Action
The VHDT-80-BR applies downward clamping pressure to help secure suitable workpieces firmly against a fixture or supporting surface during machining and fabrication operations.
2. Vertical Handle Design
The vertical handle provides convenient manual operation, allowing operators to engage and release the clamp efficiently during workpiece loading and unloading.
3. Flanged Base Configuration
The flanged base provides a practical mounting arrangement for installation on compatible fixture plates, machine surfaces, jigs, and custom workholding systems.
4. Quick Clamping & Release
The toggle mechanism enables efficient engagement and release, making the clamp suitable for repetitive production, machining, assembly, and fabrication applications.
5. Stable Workpiece Positioning
The clamp helps minimize unwanted workpiece movement during milling, drilling, welding, machining, fabrication, and assembly, supporting consistent and repeatable fixture operation.
