| Specification | Details |
|---|---|
| Brand | Tool Fast |
| Model | VHDT-80-ST |
| Product Type | Hold Down Toggle Clamp |
| Handle Type | Vertical Handle |
| Arm Type | Solid Arm |
| Clamping Action | Hold Down |
| Operation | Manual / Mechanical |
| Mechanism | Toggle |
| Application | Workholding & Fixturing |

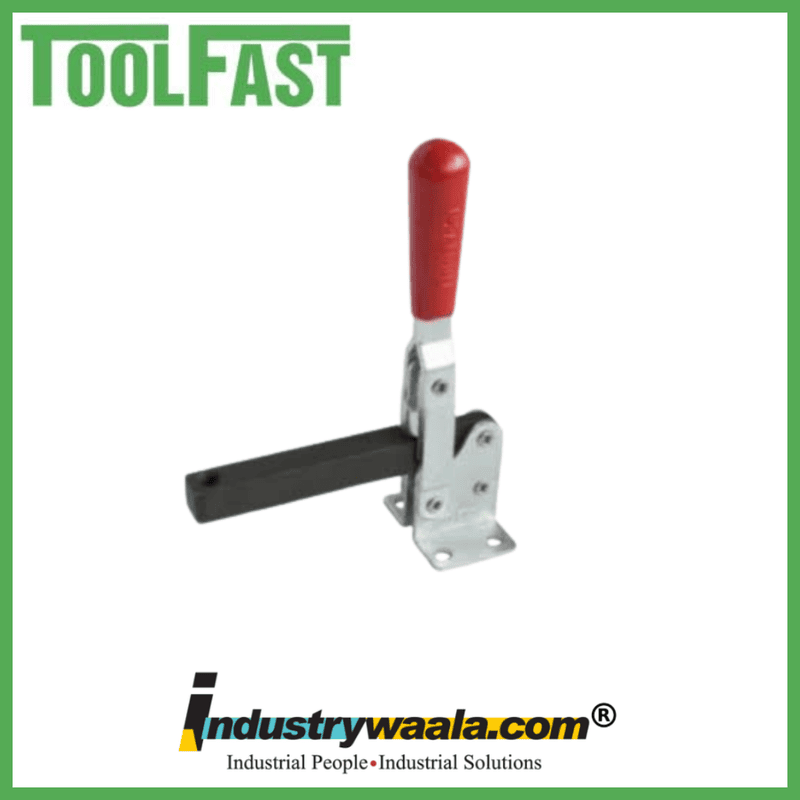

The Tool Fast VHDT-80-ST Hold Down Toggle Clamp – Vertical Handle – Solid Arm is a robust mechanical workholding component designed to securely hold and position suitable workpieces against a fixture or supporting surface during CNC machining, milling, drilling, welding, fabrication, assembly, and production operations. Its vertical-handle configuration provides convenient manual operation, while the hold-down toggle mechanism helps maintain stable workpiece positioning. The solid-arm design provides a rigid clamping arrangement for applications where a solid contact arm is preferred. The VHDT-80-ST is suitable for custom fixtures, machine-tool setups, production workholding, and industrial applications where secure and repeatable mechanical clamping is required.
Key Features
1. Hold-Down Clamping Action
The VHDT-80-ST applies downward clamping pressure to help secure suitable workpieces firmly against a fixture or supporting surface during machining and fabrication operations.
2. Vertical Handle Design
The vertical handle provides convenient manual operation, allowing operators to engage and release the clamp efficiently during workpiece loading and unloading.
3. Solid Arm Configuration
The solid arm provides a rigid clamping arrangement for suitable workholding applications where a solid contact arm is preferred for workpiece holding and fixture integration.
4. Quick Clamping & Release
The toggle mechanism enables efficient engagement and release, making the clamp suitable for repetitive production, machining, assembly, and fabrication applications.
5. Stable Workpiece Positioning
The clamp helps minimize unwanted workpiece movement during milling, drilling, welding, machining, fabrication, and assembly, supporting consistent and repeatable fixture operation.
